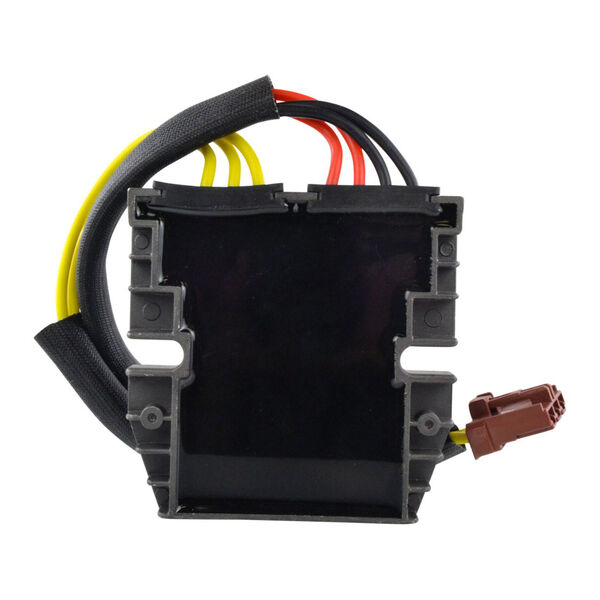

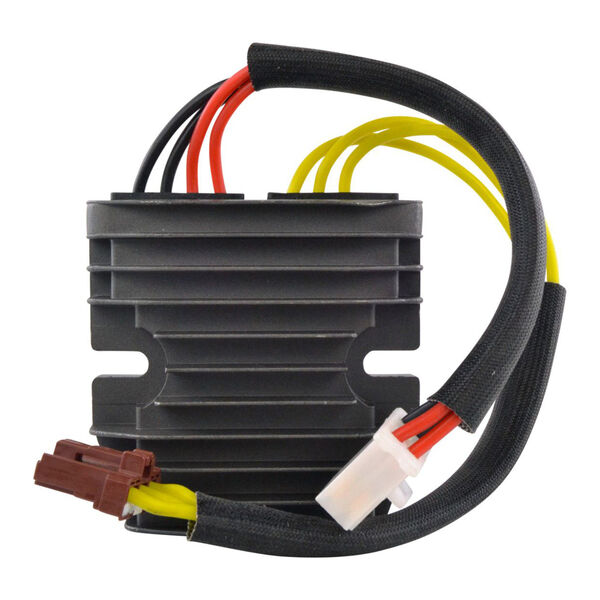

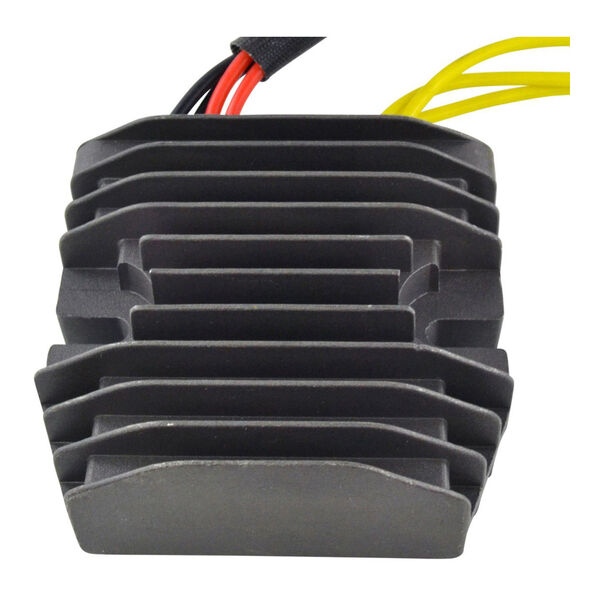

Direct replacement to your original unit.

  • Plug-and-play, direct fit, easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius.
  • Pick up pulsar coil included

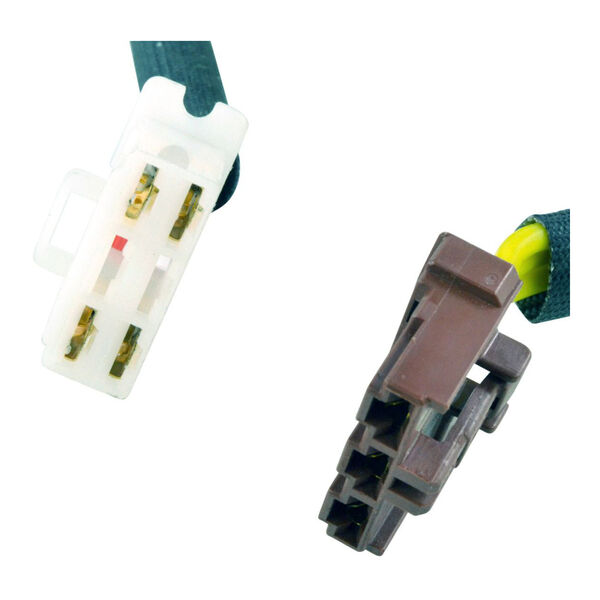

  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Width: 86 mm
  • Length: 90 mm
  • Height: 32 mm
  • Wires length: 200 mm & 240 mm
  • Fixation holes center to center: 75 mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 7
  • Number of wires: 7
  • Minimum Charging Voltage: 14.5 V ± 0.5 V
  • Maximum Charging Current: 50 A / 500 W
  • Open Circuit Voltage: 15 V
  • Operation Temperature: -20°C to 85°C

(RMS020103583)

SKU RMS020103583
Brand RMStator
Unit Of Measure each
