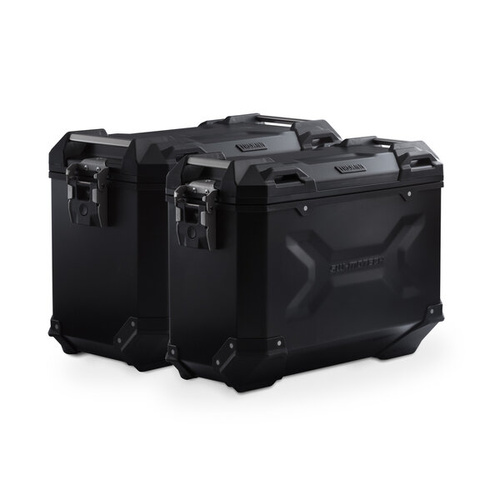

TRAX ADV Aluminum case system

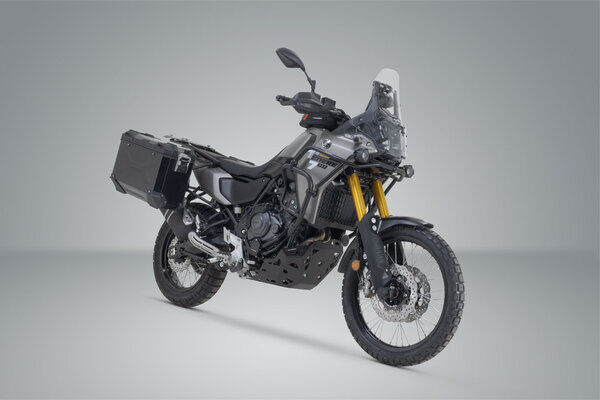

SW-MOTECH has built the black aluminum case system suitable for the Yamaha Ténéré 700 with extremely durable, bike-specific PRO side carriers.

TEST WINNER in the magazine MOTORRAD issue 05/2020. Test result: VERY GOOD

Durable TRAX ADV aluminum cases feel at home on any stretch of road: embossed patterns add stability to the 1.5 millimeter-thick, welded aluminum wall material. A completely removable lid with carrying handles made of anodized aluminum and quick release fasteners makes loading and unloading of motorcycle luggage easier; the beveled side edge provides high ground clearance when cornering. With this complete solution, you have all the components you need to travel with TRAX: two waterproof TRAX ADV side cases, two detachable SW-MOTECH side carriers, adapter kit, lock set, lid limiter and anti-theft protection at an attractive price.

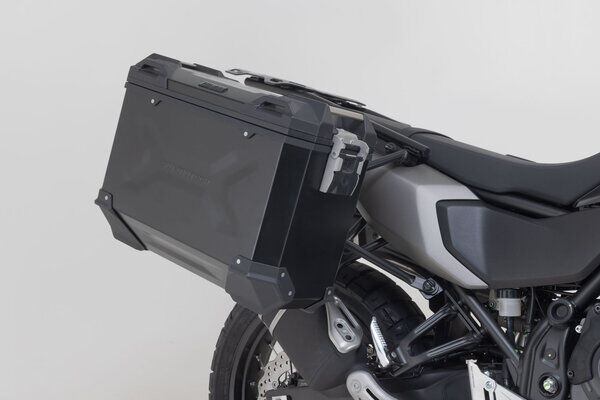

The bike-specific carrier and the size of the cases are perfectly matched to the rear shape and exhaust system of the motorcycle. A motorcycle case without compromise: the development of the TRAX ADV focused on stability and impermeability against dust and water as well as simple handling. Whether on an off-road adventure, road trip or short haul, the premium aluminum case with a wall thickness of 1.5 millimeters will come out on top in any challenge.

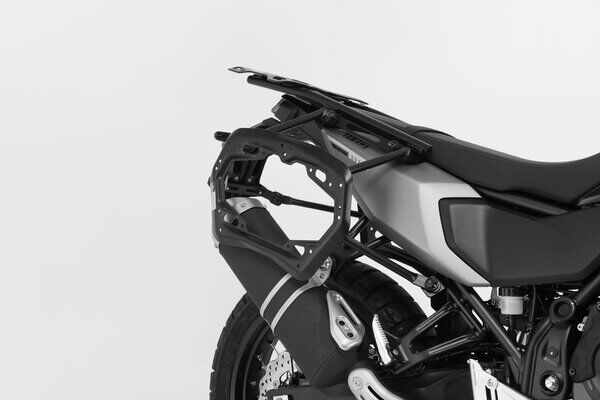

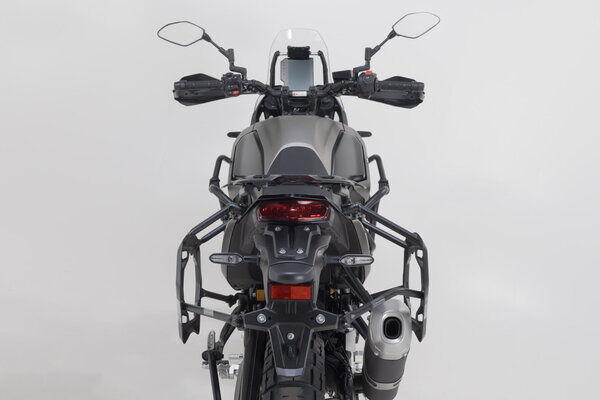

PRO Side carrier

• Extremely durable due to its optimized shape and 2.5 mm thick steel
• Perfect fit, designed to fit close to the bike
• Fully removable with newly developed, even more robust quick-release fasteners
• Optional anti-theft protection available
• For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
• Numerous functional bores
• Simple mounting on original mounting points
• Powerful corrosion protection thanks to powder coating
• Secure hold for TRAX, DUSC, AERO and SysBags WP L with adapter plate

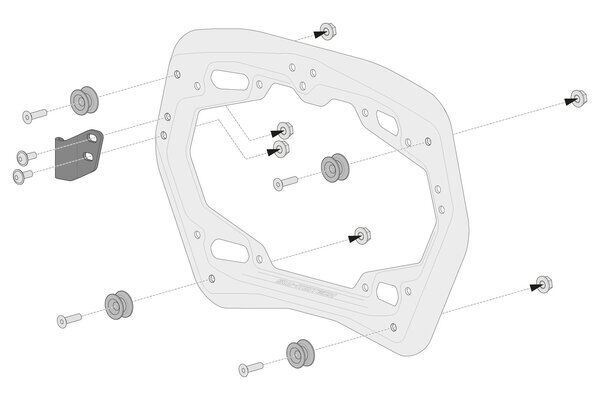

Adapter kit for PRO side carrier

• Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
• Mounted on to the existing holes of the SW-MOTECH PRO side carrier
• For left and right sides

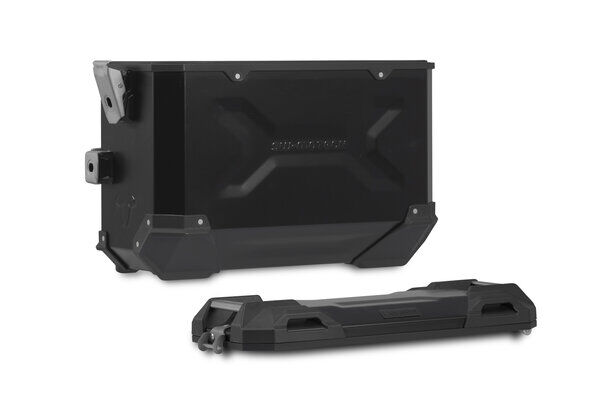

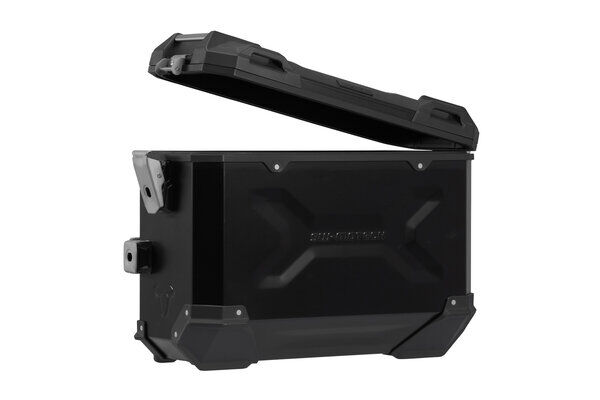

TRAX ADV L Aluminium case

• Model for the left side of the motorcycle
• Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

TRAX ADV M Aluminium case

• Model for the right side of the motorcycle
• Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
• Sturdy and watertight side case made from aluminium
• Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
• Robot-guided welding and self-piercing riveting prevent dampness from getting in
• Even when loaded, completely removable lid with quick-release fastener
• 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
• High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
• Hinges made from stainless steel, handles made from anodized aluminum
• Lid limiters provide additional stability when using extra luggage on the lid
• Exchangeable cover gasket
• The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
• Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
• Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
• A lock set with 6 identical locks is available as an option and is not included in delivery

TRAX lock set with PRO anti-theft protection

• 9 matching locks
• With anti-theft protection for PRO side carrier
• Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
• One key for all locks

Multi-tool key chain attachment

• Multitool as practical key chain
• Quick-release fastener opener for EVO and PRO side carriers
• Hex key (14 mm) - ideal for many motorcycle mirrors
• Hex keys in four additional sizes (8, 10, 12, 13 mm)
• Bottle opener
• Key chain eyelet
• With laser-etched SW-MOTECH logo

Included in delivery

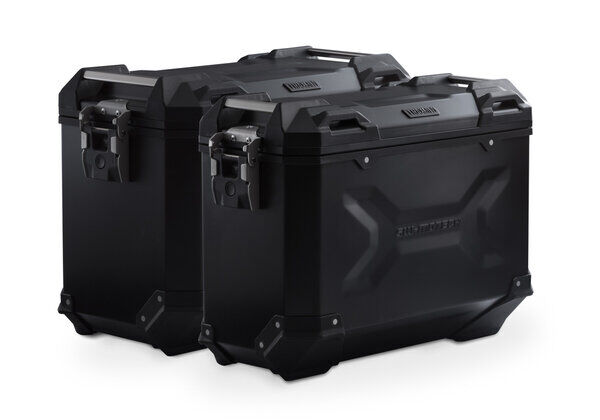

• 1 x TRAX ADV L Aluminium case, 45,00 l, left, black
• 1 x TRAX ADV M Aluminium case, 37,00 l, right, black
• 2 x PRO Side carrier
• 2 x Adapter kit for PRO side carrier
• 1 x TRAX lock set with PRO anti-theft protection
• 1 x Multi-tool key chain attachment
• 4 x Lid limiter
• 2 x Storage bag
• Mounting instructions
• Mounting material
