Trax-ADV Adventure Set for 2023-2025 KTM 890 SMT

Adventure set luggage

The Adventure luggage set contains the PRO side carriers and the ADVENTURE RACK that go with the KTM 790 Adventure and KTM 890 Adventure. The side carriers and the luggage carrier are attached to the model-specific attachment points and offer a secure hold for the silver TRAX ADV aluminium cases.

This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases.

Our sturdy TRAX ADV aluminum cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

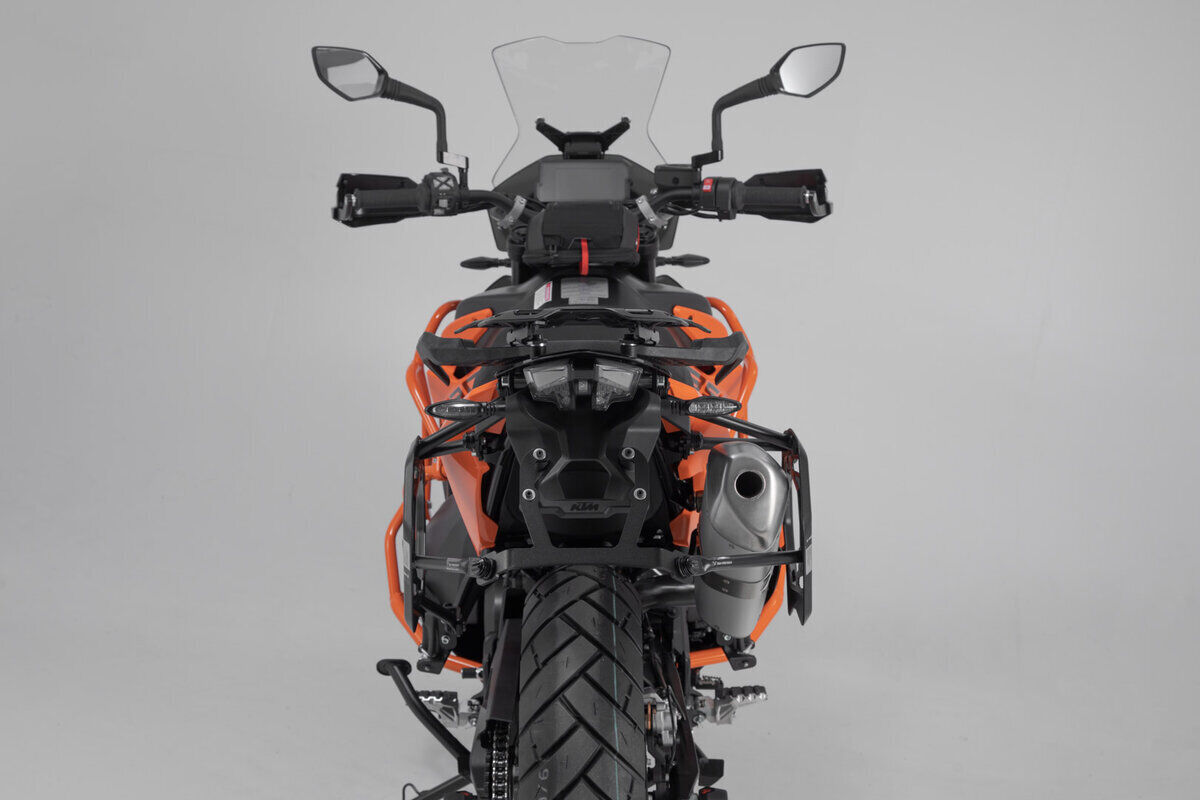

PRO Side carrier
- Extremely durable due to its optimized shape and 2.5 mm thick steel
- Perfect fit, designed to fit close to the bike
- Fully removable with newly developed, even more robust quick-release fasteners
- Optional anti-theft protection available
- For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
- Numerous functional bores, compatible with the RotopaX system among others
- Simple mounting on original mounting points
- Powerful corrosion protection thanks to powder coating
- Secure hold for TRAX, AERO and SysBags with adapter plate (SysBag 15, 30, WP L)
- Adapter kits for attaching cases from Givi/Kappa, Krauser and Shad are also available
- Details
- Material: Steel
- Surface: powder coated
- Color: black
- Total Weight: appr. 5,8 kg / appr. 12.8 lb
- Note
- Adapter kits are required for aluminum cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).

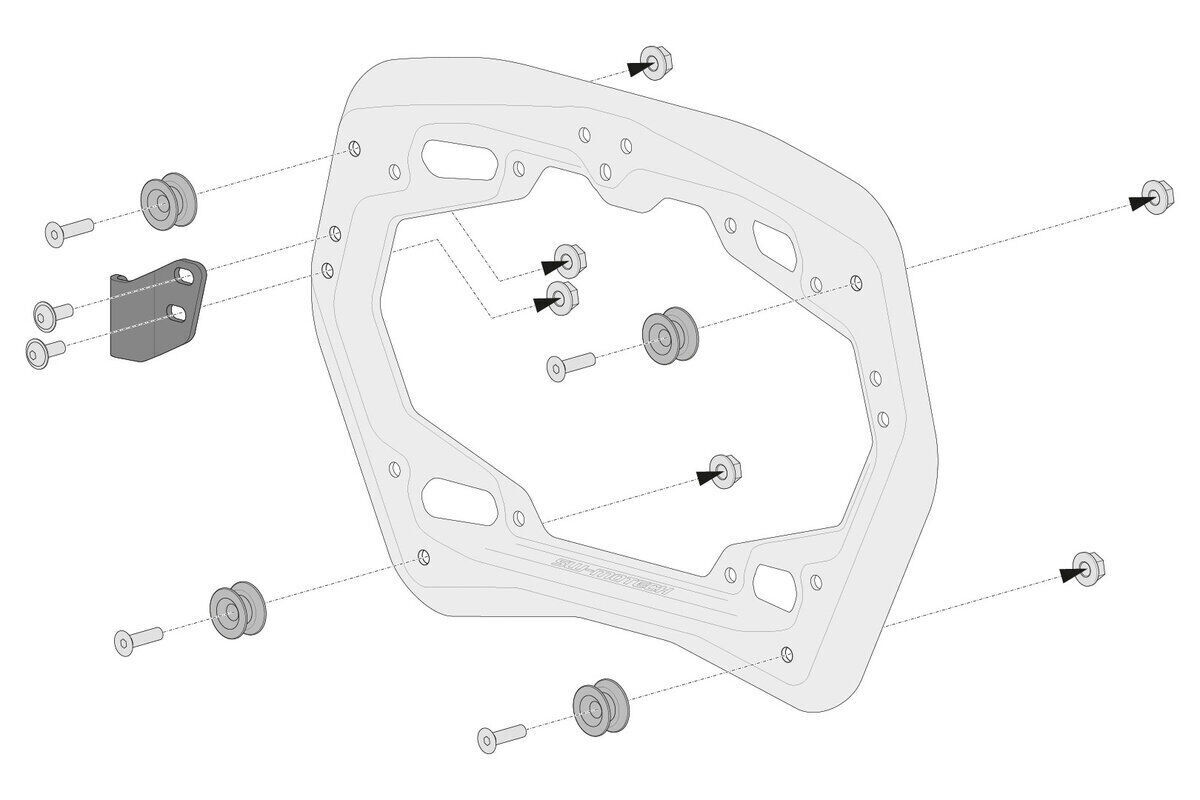

Adapter kit for PRO side carrier
- Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
- Mounted on to the existing holes of the SW-MOTECH PRO side carrier
- For left and right sides
- Details
- Color: silver
- Total Weight: appr. 0,3 kg / appr. 0.7 lb

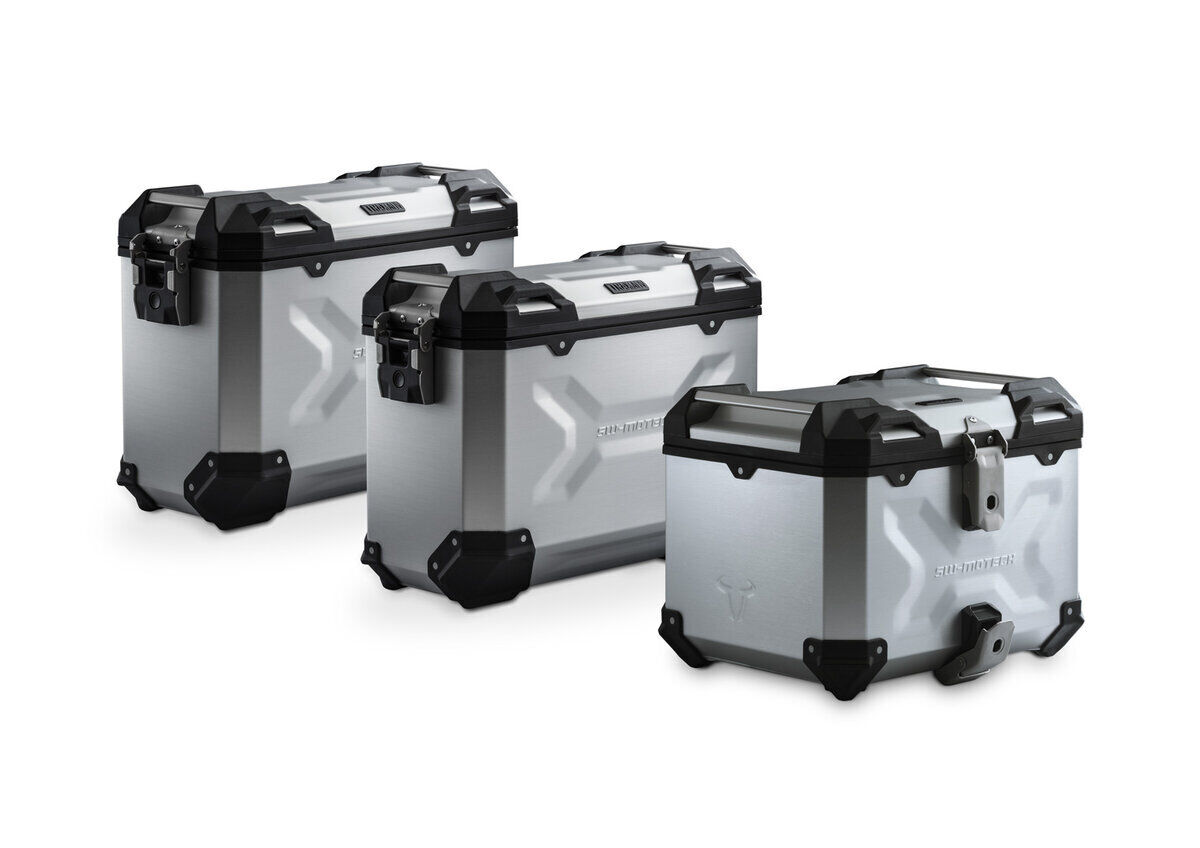

TRAX ADV L Aluminium case
- Model for the left side of the motorcycle
- Protection against oxidation and abrasion thanks to anodized finish
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
- Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: anodized
- Color: silver
- Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in
- Total Weight: appr. 5,4 kg / appr. 11.9 lb
- Total Volume: 45,0 l
- Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
- Required for mounting
- Side carrier, adapter kit, TRAX lock set
TRAX ADV M Aluminium case
- Model for the right side of the motorcycle
- Protection against oxidation and abrasion thanks to anodized finish
- Sturdy and watertight side case made from aluminium
- Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
- Robot-guided welding and self-piercing riveting prevent dampness from getting in
- Even when loaded, completely removable lid with quick-release fastener
- 4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
- High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
- Hinges made from stainless steel, handles made from anodized aluminum
- Lid limiters provide additional stability when using extra luggage on the lid
- Exchangeable cover gasket
- The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
- Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
- Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
- A lock set with 6 identical locks is available as an option and is not included in delivery
- Details
- Material: Aluminum
- Surface: anodized
- Color: silver
- Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in
- Total Weight: appr. 5,1 kg / appr. 11.2 lb
- Total Volume: 37,0 l
- Note
- Also available as a TRAX ADV aluminum case system with 2 side cases, bike-specific side carriers, adapters and lock set.
- Required for mounting
- Side carrier, adapter kit, TRAX lock set
TRAX lock set with PRO anti-theft protection
- 9 matching locks
- With anti-theft protection for PRO side carrier
- Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
- One key for all locks
- Details
- Color: black
- Total Weight: appr. 0,5 kg / appr. 1.0 lb
Multi-tool key chain attachment
- Multitool as practical key chain
- Quick-release fastener opener for EVO and PRO side carriers
- Hex key (14 mm) - ideal for many motorcycle mirrors
- Hex keys in four additional sizes (8, 10, 12, 13 mm)
- Bottle opener
- Key chain eyelet
- With laser-etched SW-MOTECH logo
- Details
- Material: Stainless steel
- Surface: brushed
- Color: silver
- Total Weight: appr. 0,0 kg / appr. 0.1 lb

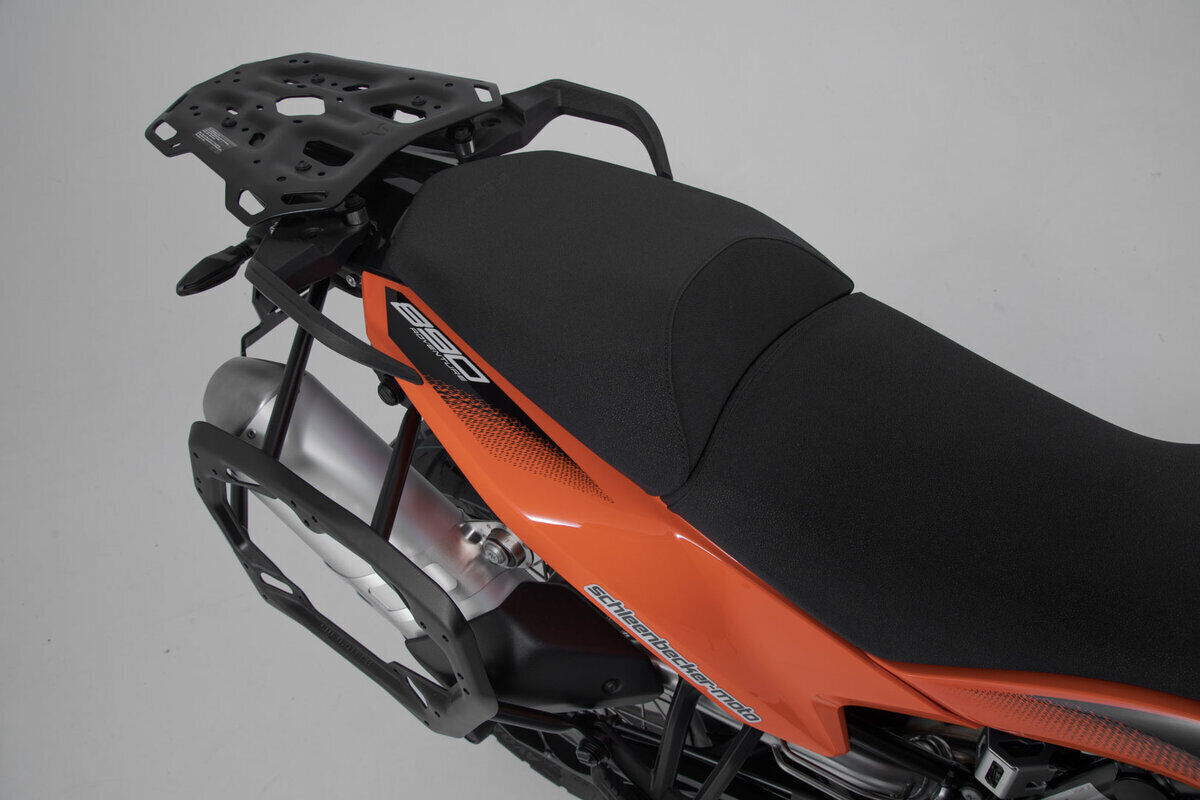

ADVENTURE-RACK
- Extremely robust rack for long tours and off-road rides
- Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK
- Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions
- Multiple functional bores: for TRAX top cases. SysBag with adapter plate are available separately with the appropriate adapter kit
- Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available
- Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible
- Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)
- Easy installation on original attachment points with bike-specific attachment elements
- Effective corrosion protection from black powder coating
- Made of light but sturdy 4mm-thick aluminum alloy
- Details
- Material: Aluminum
- Material strength: 0,40 cm / 0.16 in
- Surface: powder coated
- Color: black
- Total Weight: appr. 1,7 kg / appr. 3.8 lb
Adapter kit for ADVENTURE-RACK
- Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK
- Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
- Easy mounting: the adapter kit is screwed onto the rack
- Details
- Material: Polyamide / Stainless steel
- Color: black / silver
- Total Weight: appr. 0,2 kg / appr. 0.4 lb
- Note
- The adapter kits for Sysbag 15/30 are already included in delivery together with the rear panel-mounted adapter plates.
TRAX ADV Top case
- Protection from corrosion and wear due to black powder coating
- Premium top case made from 1.5 mm-thick aluminum
- Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
- 100% water- and dustproof due to robotic welding and punch rivet technology
- Theft protection: Case lid and case can be locked when on the carrier
- High stability thanks to the visually appealing and functional embossed sheet metal
- Additional protection from corners made of glassfiber-reinforced polyamide
- Easy to clean surface
- A lock set with 2 identical locks is available as an option and included in delivery when purchasing a TRAX ADV top case system
- Details
- Material: Aluminum
- Material strength: 0,15 cm / 0.06 in
- Surface: powder coated
- Color: black
- Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in
- Total Weight: appr. 4,8 kg / appr. 10.6 lb
- Total Volume: 38,0 l
- Note
- Also available as a TRAX ADV top case system with ADVENTURE-RACK, adapters and lock set.
TRAX WP M/L accessory bag
- Waterproof accessory bag that can be lashed onto side cases
- For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
- 15 litres of additional storage, padded
- Circumferential, waterproof zipper enables quick access to the entire contents
- Overlapping lid is secured using plastic clips
- Divider for custom organisation of the interior
- Made of robust, easy to clean material
- Sleek design with reflective details
- Sturdy carrying handle
- 8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)
- Details
- Material: 500D Polyester
- Color: black
- Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in
- Total Weight: appr. 1,3 kg / appr. 2.9 lb
- Total Volume: 15,0 l
- Note
- The TRAX WP M/L accessory bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.
