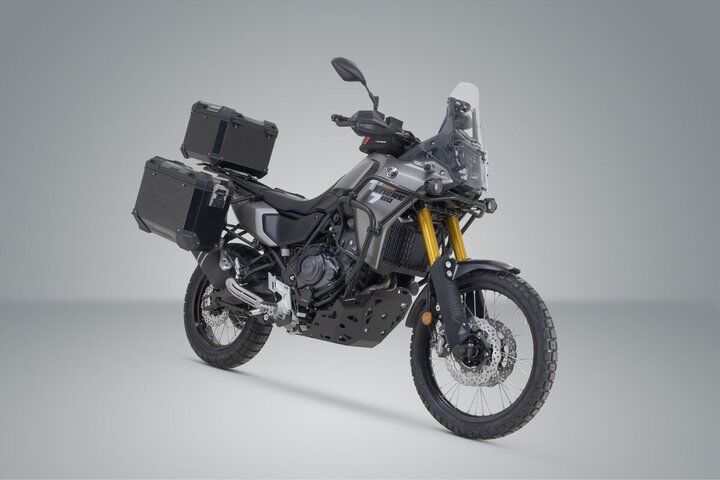

Trax-ADV Adventure Set for 2023-2024 Yamaha Tenere 700 Extreme Edition

Adventure set

SW-MOTECH builds the aluminium case system with the model-specific PRO side carriers, which are extremely resilient.

This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminum case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the ADVENTURE-RACK guarantee an optimal fit and secure grip for aluminium cases.

Our sturdy TRAX ADV aluminum cases convince with their stability, impermeability to water and dust, elegant optics, well-thought out features and a large selection of accessories. For even more storage, this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

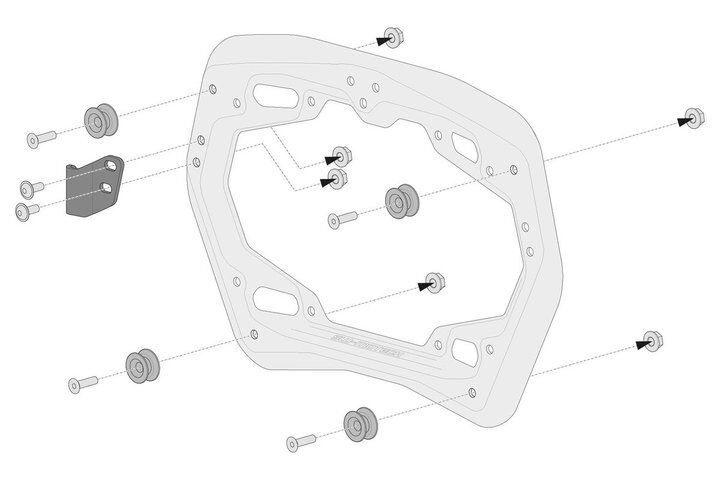

PRO Side carrier

Extremely durable due to its optimized shape and 2.5 mm thick steel
Perfect fit, designed to fit close to the bike
Fully removable with newly developed, even more robust quick-release fasteners
Optional anti-theft protection available
For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
Numerous functional bores
Simple mounting on original mounting points
Powerful corrosion protection thanks to powder coating
Secure hold for TRAX, DUSC, AERO and SysBags WP L with adapter plate

Adapter kit for PRO side carrier

Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier
Mounted on to the existing holes of the SW-MOTECH PRO side carrier
For left and right sides

TRAX lock set with PRO anti-theft protection

9 matching locks
With anti-theft protection for PRO side carrier
Compatible with side cases and top cases from the TRAX ADV and TRAX ION series
One key for all locks

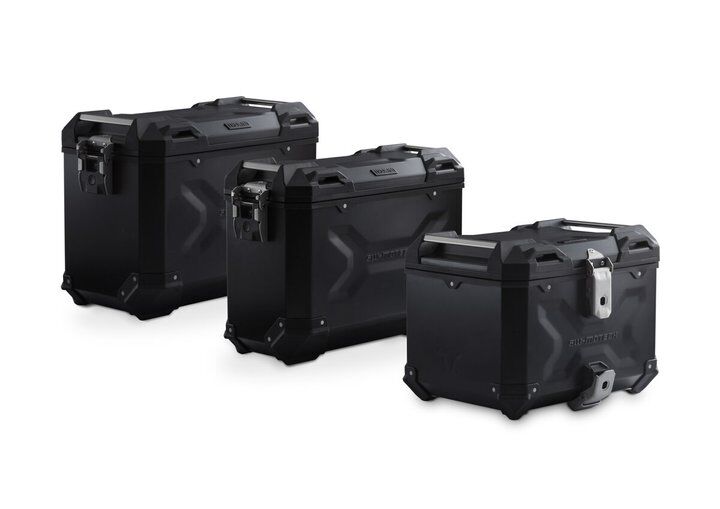

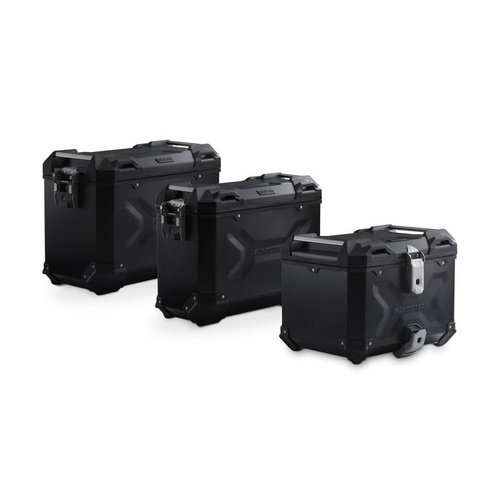

TRAX Aluminium cases

Protection against oxidation and abrasion thanks to black powder coating, easy to clean surface
Sturdy and watertight side case made from aluminium
Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fiber reinforced plastic corner caps
Robot-guided welding and self-piercing riveting prevent dampness from getting in
Even when loaded, completely removable lid with quick-release fastener
4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag)
High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail
Hinges made from stainless steel, handles made from anodized aluminum
Lid limiters provide additional stability when using extra luggage on the lid
Exchangeable cover gasket
The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations
Quick mounting on to all PRO and EVO luggage carriers (adapters sold separately)
Adapter kits also available for mounting on to girders from other manufacturers such as Givi and Hepco & Becker
A lock set with 6 identical locks is available as an option and is not included in delivery

Multi-tool key chain attachment

Multitool as practical key chain
Quick-release fastener opener for EVO and PRO side carriers
Hex key (14 mm) - ideal for many motorcycle mirrors
Hex keys in four additional sizes (8, 10, 12, 13 mm)
Bottle opener
Key chain eyelet
With laser-etched SW-MOTECH logo

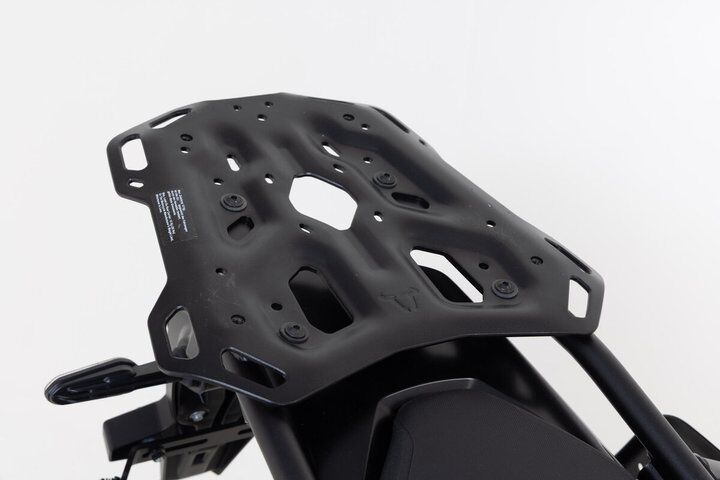

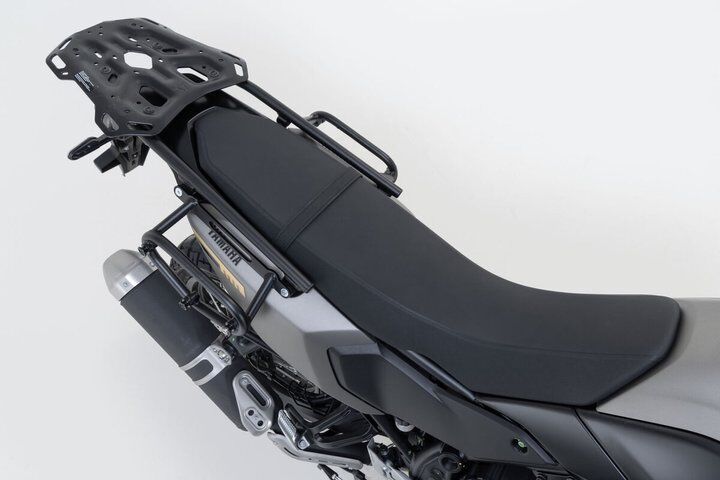

ADVENTURE-RACK

Extremely robust rack for long tours and off-road rides
Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the ADVENTURE-RACK
Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions
Multiple functional bores: for TRAX top cases. SysBag with adapter plate are available separately with the appropriate adapter kit
Adapter kits for attaching top cases by other manufacturers (Givi Monokey and Monolock, Krauser, Shad I und II) also available
Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible
Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm)
Easy installation on original attachment points with bike-specific attachment elements
Effective corrosion protection from black powder coating
Made of light but sturdy 4mm-thick aluminum alloy

Adapter kit for ADVENTURE-RACK

Adapter kit for attaching a TRAX top case onto an ADVENTURE-RACK
Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH
Easy mounting: the adapter kit is screwed onto the rack

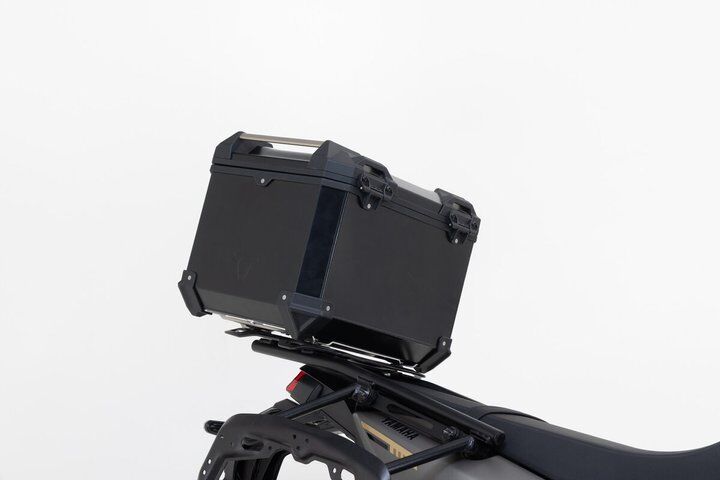

TRAX ADV Top case

Protection from corrosion and wear due to black powder coating
Premium top case made from 1.5 mm-thick aluminum
Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points
100% water- and dustproof due to robotic welding and punch rivet technology
Theft protection: Case lid and case can be locked when on the carrier
High stability thanks to the visually appealing and functional embossed sheet metal
Additional protection from corners made of glassfiber-reinforced polyamide
Easy to clean surface
A lock set with 2 identical locks is available as an option and included in delivery when purchasing a TRAX ADV top case system

TRAX WP M/L accessory bag

Waterproof accessory bag that can be lashed onto side cases
For side cases from SW-MOTECH and other brands (such as BMW, for ex.)
15 litres of additional storage, padded
Circumferential, waterproof zipper enables quick access to the entire contents
Overlapping lid is secured using plastic clips
Divider for custom organisation of the interior
Made of robust, easy to clean material
Sleek design with reflective details
Sturdy carrying handle
8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm)
