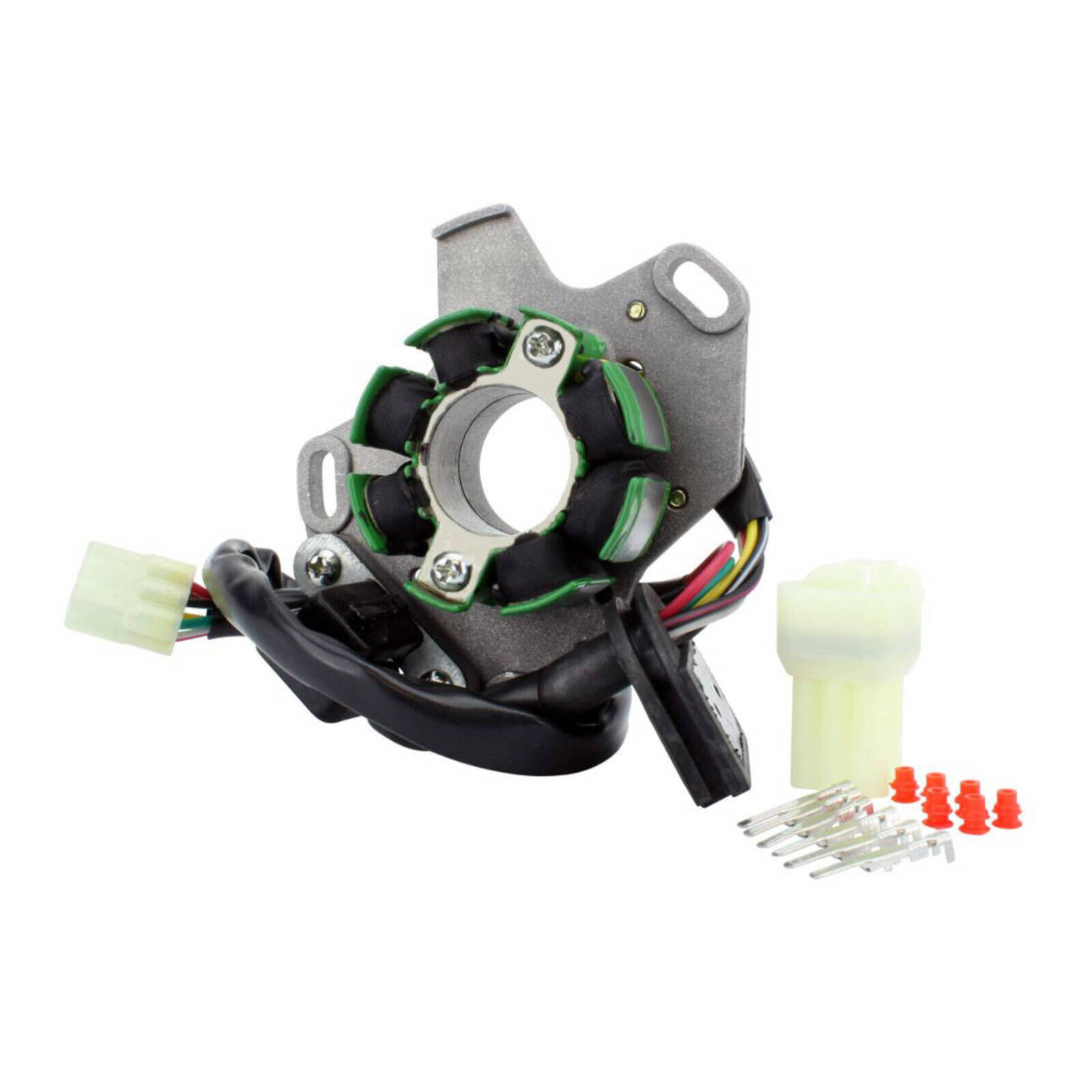

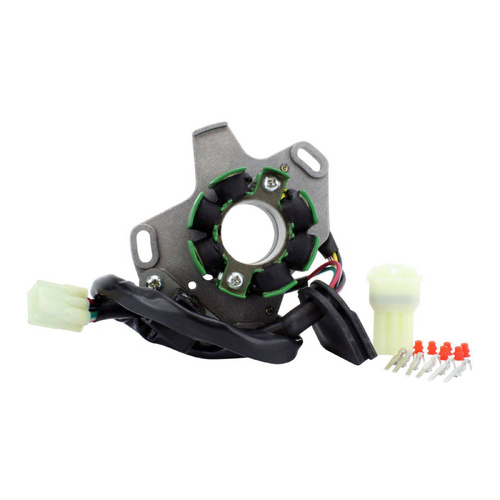

Direct replacement to your original unit.

  • Plug-and-play direct fit easy installation
  • Highest grade of lamination materials
  • Highest grade of copper winding resistant to 200 degrees Celsius.
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
  • All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Dimensions:

  • Interior diameter: 28 mm
  • Exterior diameter: 58 mm
  • Thickness: 12 mm
  • Length of wires stator to grommet: 15 mm
  • Length of wires grommet to plug: 530 mm

Other Specifications:

  • Number of wires: 6
  • Number of plugs: 1
  • Number of pins: 6

Wire to Wire Resistance:

  • Alternator: Yellow to Black/White = 0.4 ohms ±20%
  • Pickup: Red to Green = 100 ohms ±20%
  • Source: Black/Red to Red/White = 32 ohms ±20%

(RMS010102183)

SKU RMS010102183
Barcode # RMS010-102183
Brand RMStator
Unit Of Measure each
