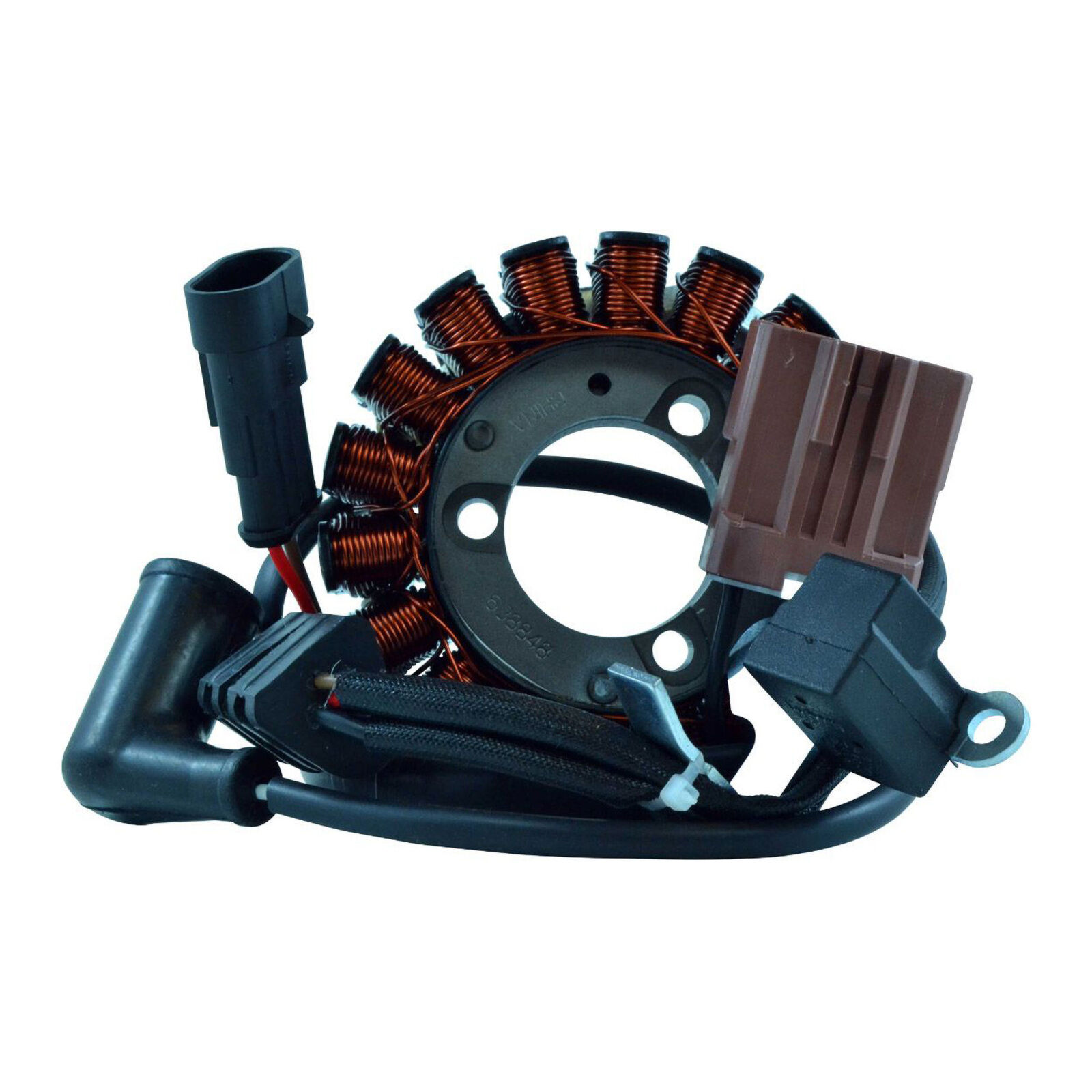

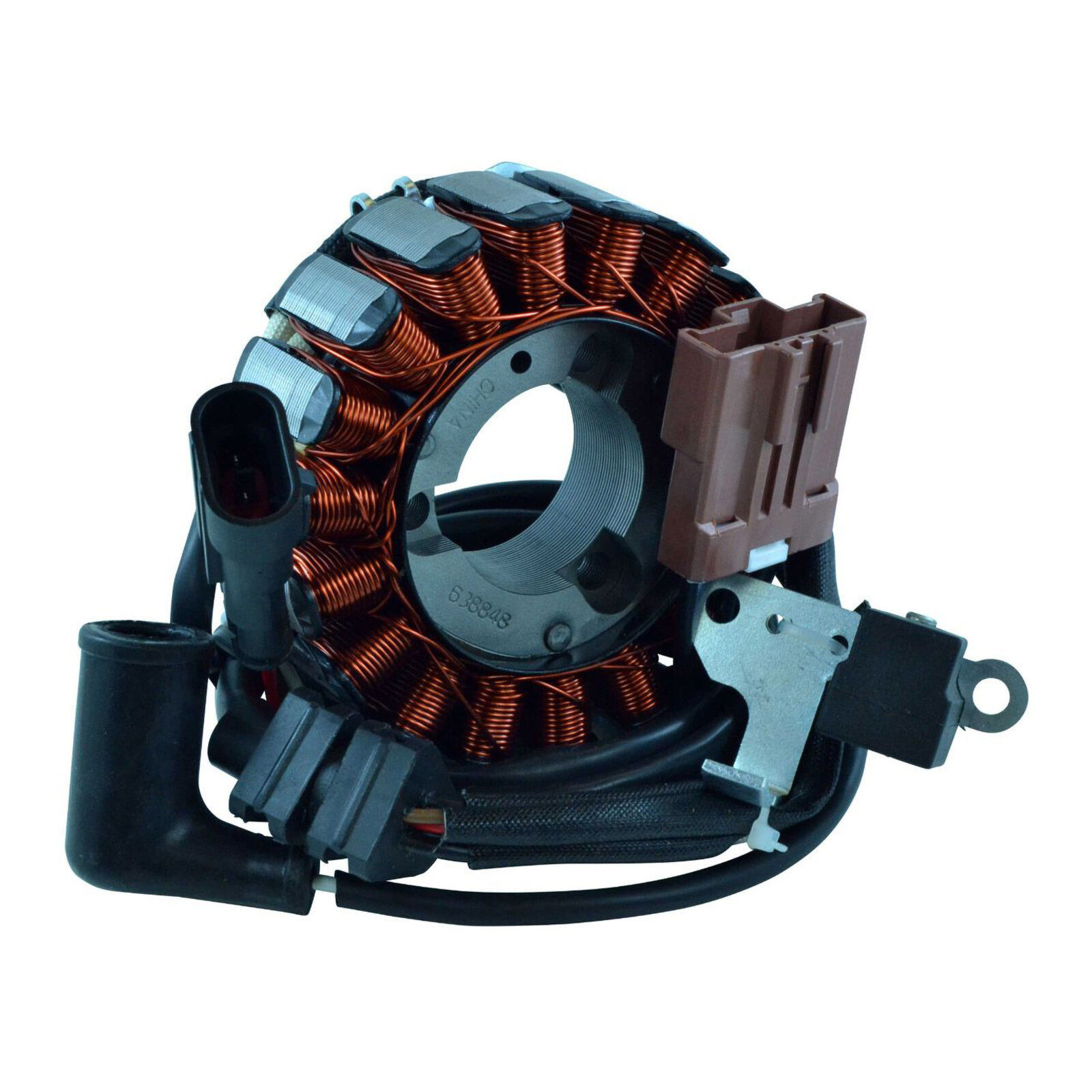

RMStator Coil Stator for 2012 Aprilia SR300 Max IE
In Stock
RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Dimensions :
Interior diameter : 36 mm
Exterior diameter : 95 mm
Thickness : 32 mm
Length of wires stator to grommet : 165 mm
Length of wires grommet to plug : 585 mm / 780 mm
Length of pickup coil's wire to grommet : 88 mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Number of poles : 18
Wire to wire resistance :
Alternator :Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Green/White to Yellow/White = 125 ohms +-20%
Source : Black/Red to Ground = 210 ohms +-20%
(RMS010104193_2)
| SKU | RMS010104193_2 |
| Barcode # | RMS010-104193 |
| Brand | RMStator |
| Unit Of Measure | each |
| Modified Item | No |
| Custom Bundle | No |
| Machine Type | Motorbike |
| Placement on Vehicle | Front |
| Product Type | Stator |
| Type | Stator |
