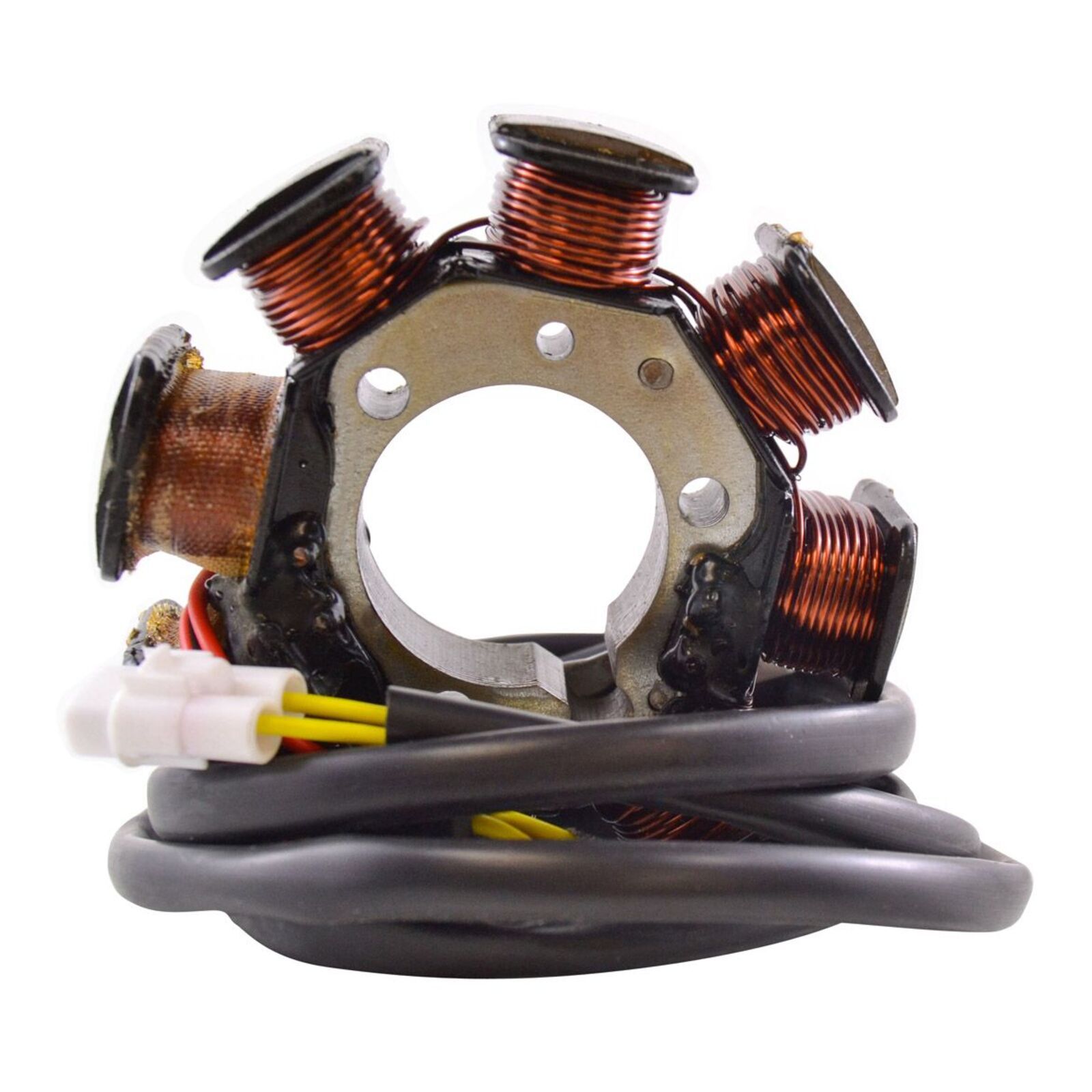

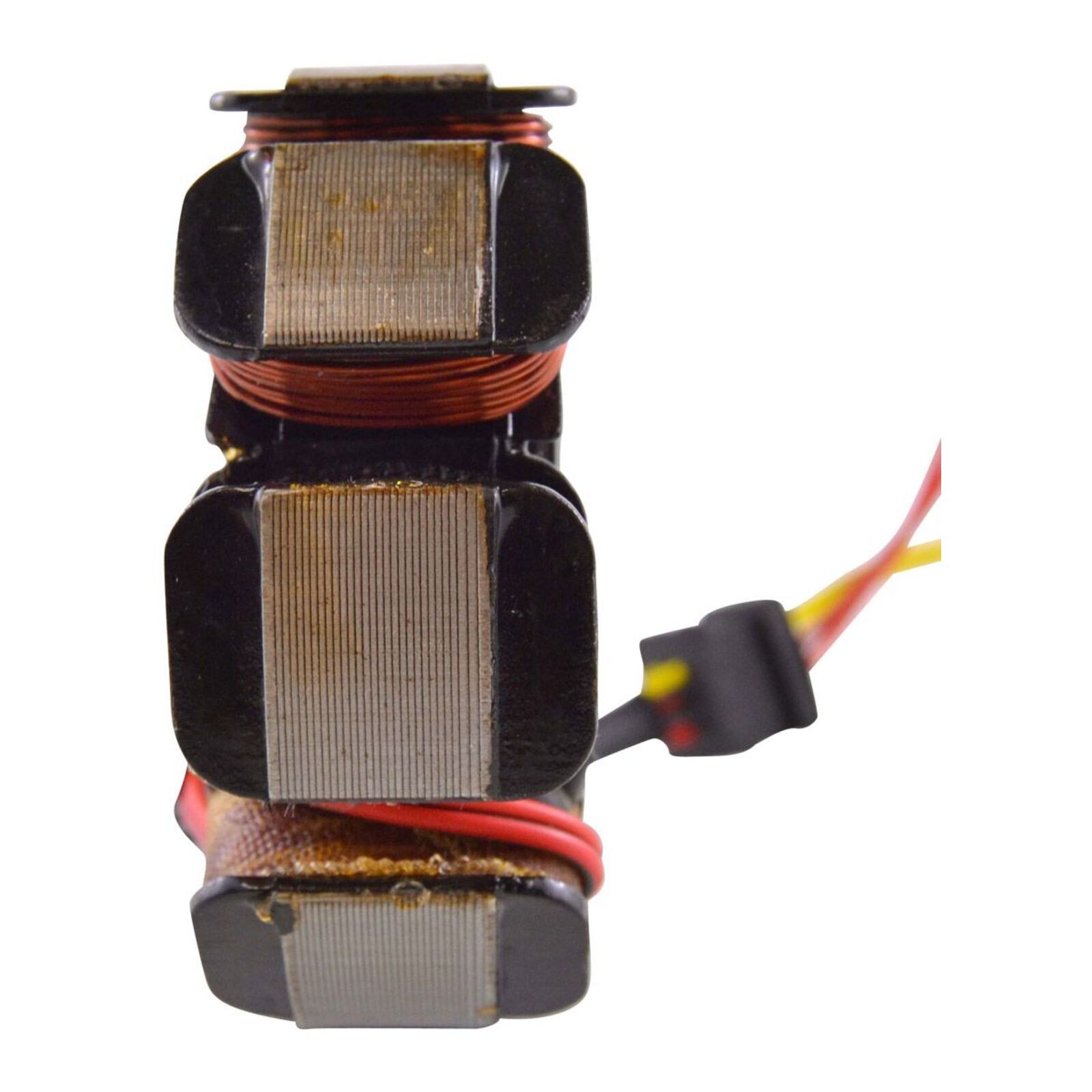

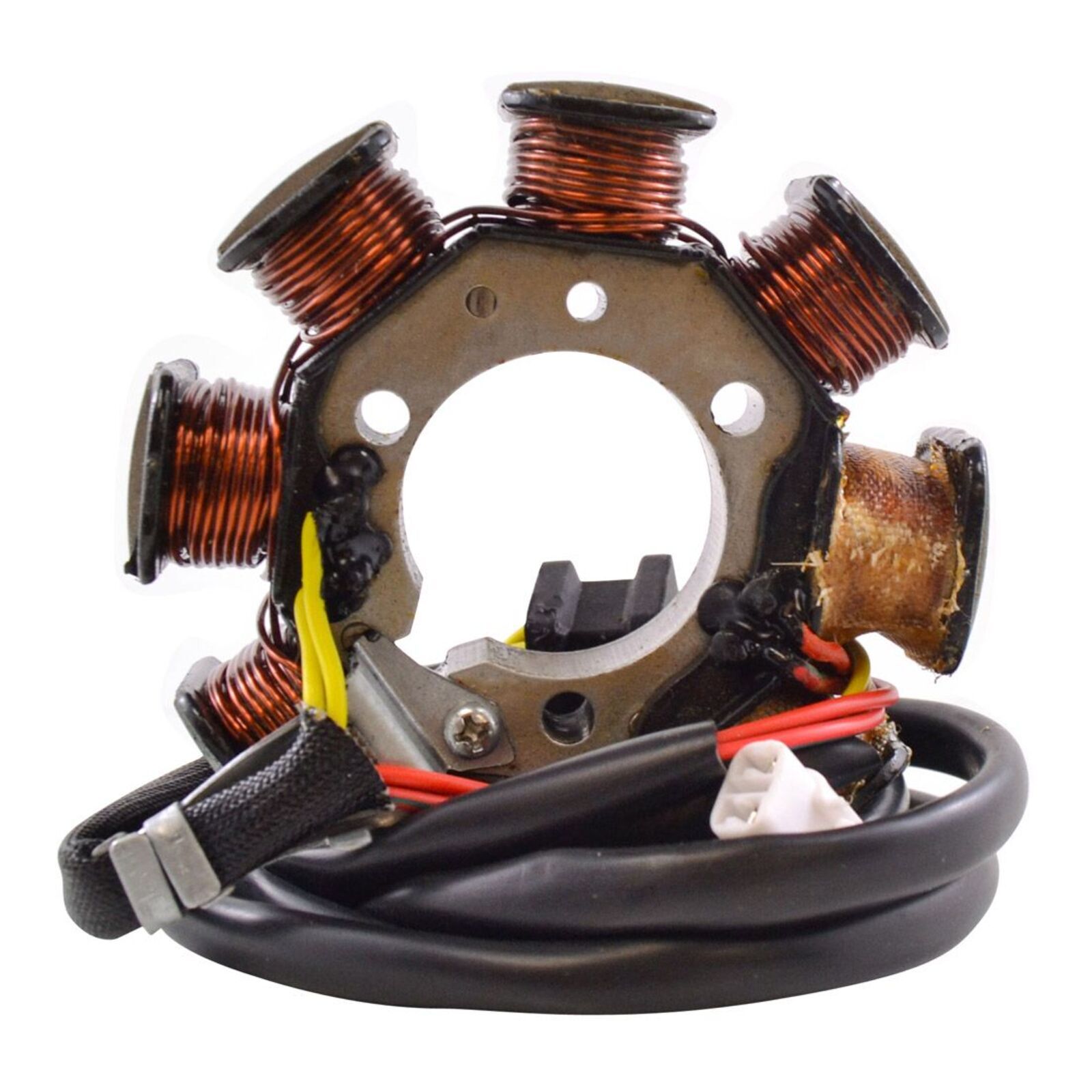

Direct replacement for your original unit.

  • Plug-and-play direct fit for easy installation.
  • Constructed with the highest grade lamination materials.
  • Equipped with highest grade copper windings resistant to 200 degrees Celsius.

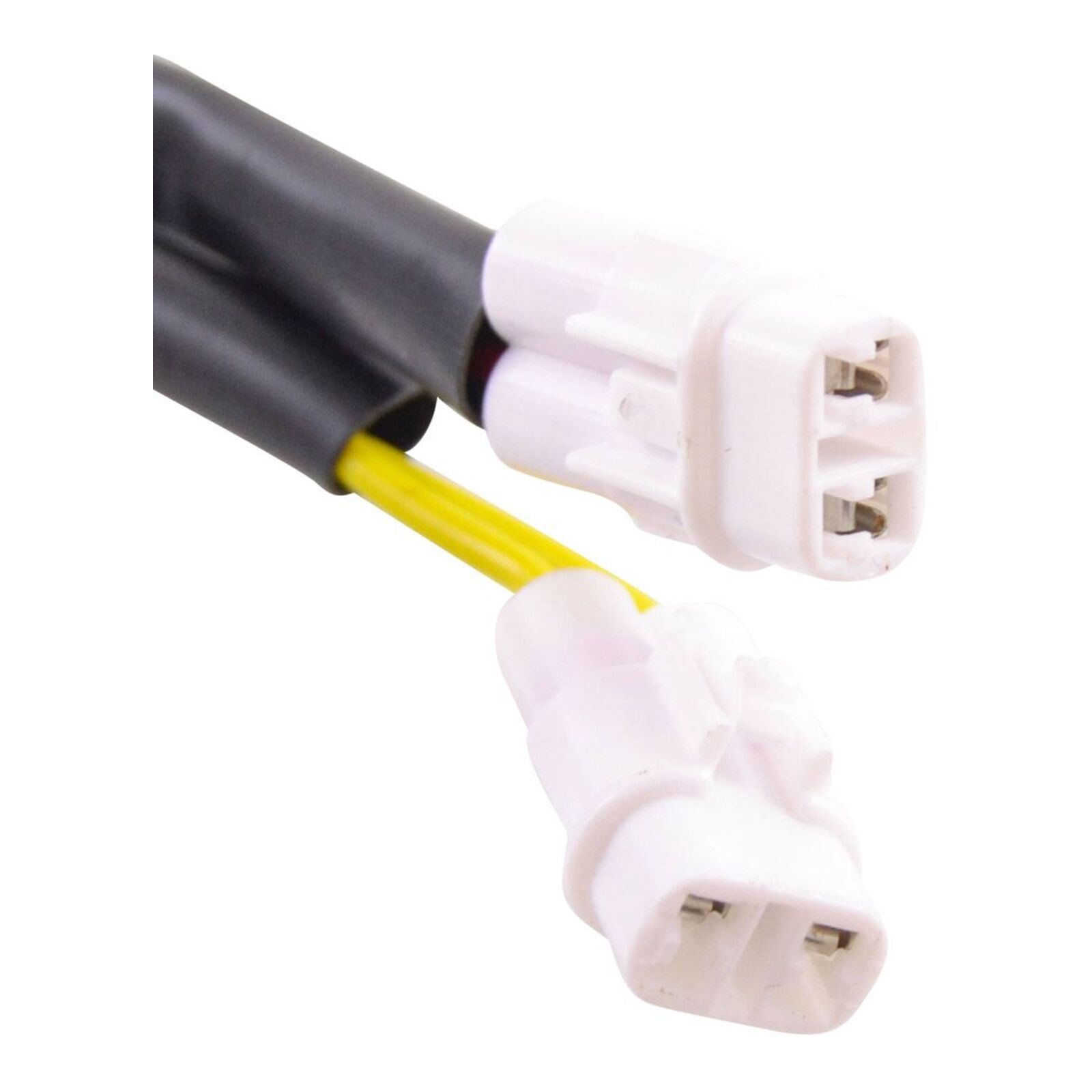

  • Includes connector.
  • Includes rubber grommet.
  • All products are tested before shipping.

Specifications:

Dimensions:

  • Interior diameter: 34mm
  • Exterior diameter: 92mm
  • Thickness: 18mm
  • Length of wires (stator to grommet): 100mm
  • Length of wires (grommet to plug): 150mm and 900mm

Other Specifications:

  • Number of wires: 4
  • Number of plugs: 2
  • Number of pins: 4

Wire to Wire Resistance:

  • Alternator (Yellow to Yellow): 0.4 ohms +/- 20%
  • Source (Red to Black/Red): 140 ohms +/- 20%

(RMS01318)

SKU RMS01318
Brand RMStator
Unit Of Measure each
