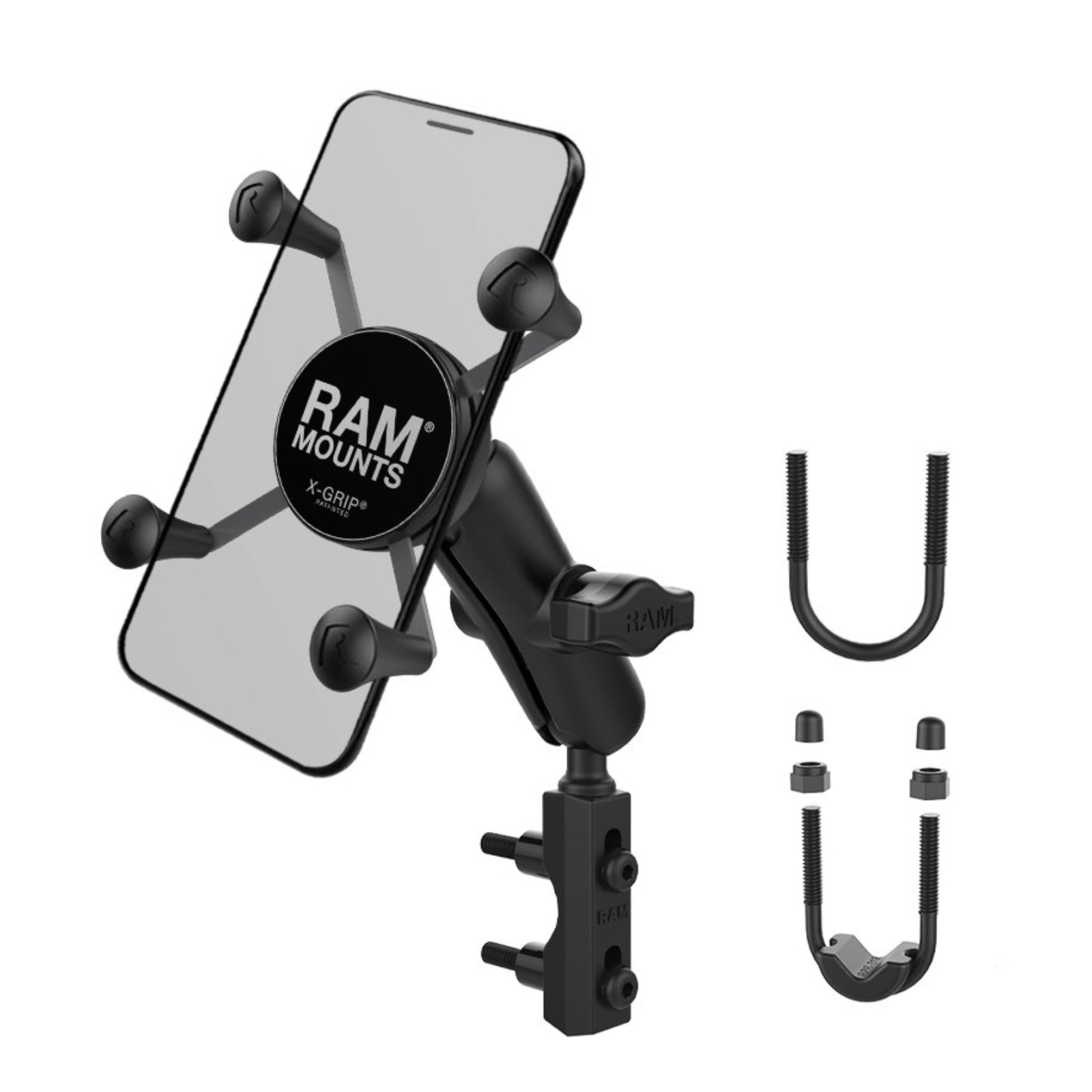

The RAM-B-174-UN7U consists of hardware for mounting to eitherbrake/clutch reservoirs and rails that are 0.5 to 1.25 in diameter adouble socket arm and a universal X-Grip^® cell phonecradle. Designed into the mount is a 1 diameter patented rubber ball andsocket system with adjustment points at both ends of the socket arm; thiswith a twist of the arm knob allows you to move the X-Grip^®mount to your optimum viewing position. The mounting hardware forbrake/clutch reservoirs includes both standard and metric mounting bolts.The included X-Grip^® cradle has a clean and clever four-legdesign that sports great holding power without hiding your phone behindfoam pads and plastic. The spring-loaded X-Grip^® cradleexpands and contracts allowing for a perfect custom fit for your cellphone. The perfect complement to the modern sleek interior of today'svehicles the RAM X-Grip^® is the cell phone cradle evolved.The X-Grip^® includes a device tether recommended for outdoorapplications. The cradle is compatible with handheld devices that will fitthe dimensions listed below. It is important to verify the dimensions ofyour handheld device with a case/sleeve/skin when determining the overallsize.

Specifications:

• CLAMP RANGE: 0.5 (12.7mm) - 1.25 (31.7mm) diameter
• HOLDER DIMENSIONS: Width Range: 1.875 (47.6mm) -3.25 (82.5mm) Depth Range: 0.875 (22.2mm) max
• SOCKET-TO-SOCKETLENGTH: 3 (76.2mm)
• BALL SIZE: B Size (1 25.4mm)

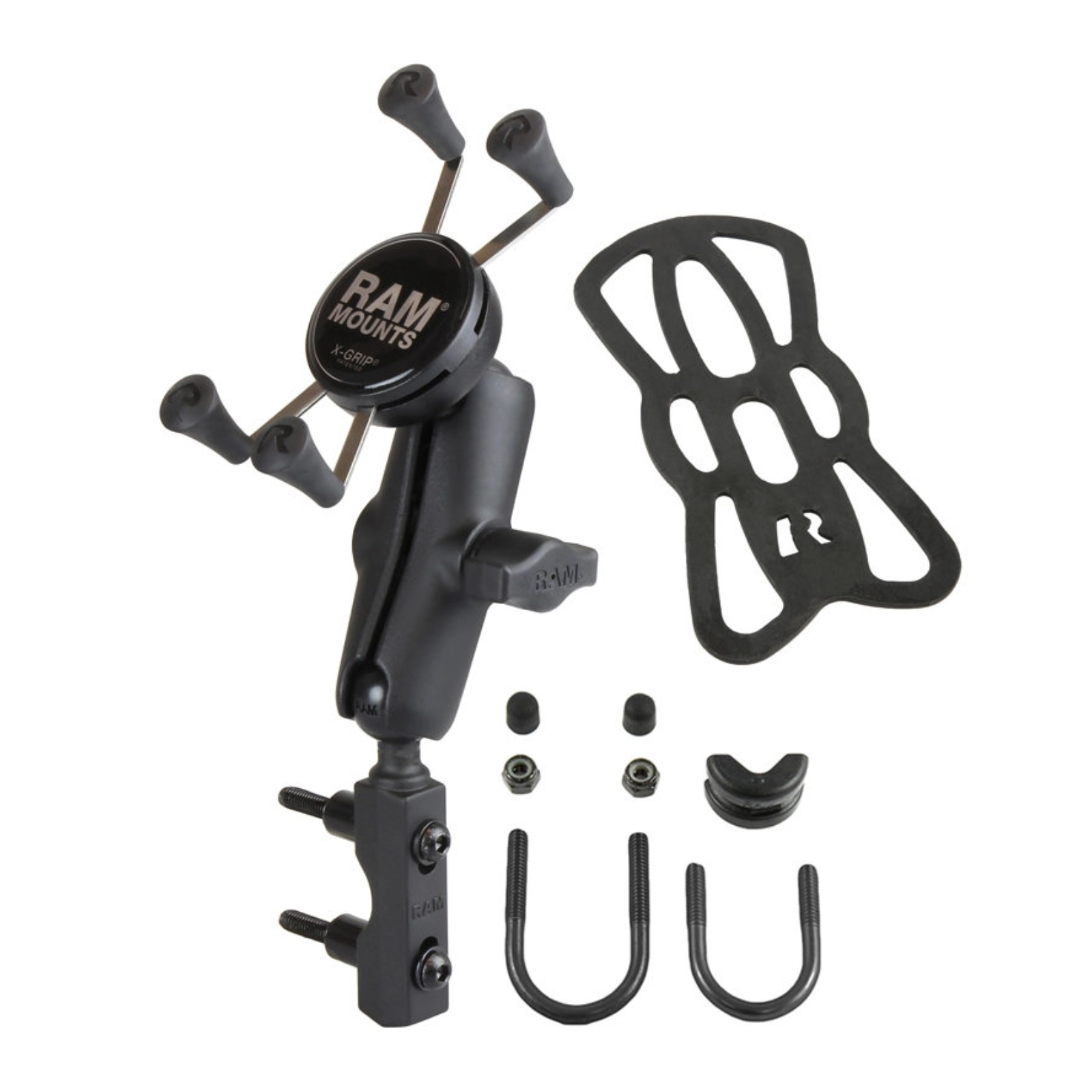

Assembly Hardware Included:

• x1 OptionalTether
• x1 Glue Tube for Rubber Caps
• x2 M6 x 55mm HexBolts
• x2 #1/4-20 x 2 Hex Bolts
• x2 1/4 -20 x 2.5 HexBolts
• x2 1/2 Spacers
• x2 1/4 Split Lock Washers
• x11/4 -20 U-Bolt for .5 - 1 Rails
• x1 1/4 -20 U-Bolt for 1 - 1.25 Rails
• x2 1/4 -20 Nylock Nuts
• x2 Rubber Caps
• x1U-Bolt Spacer
