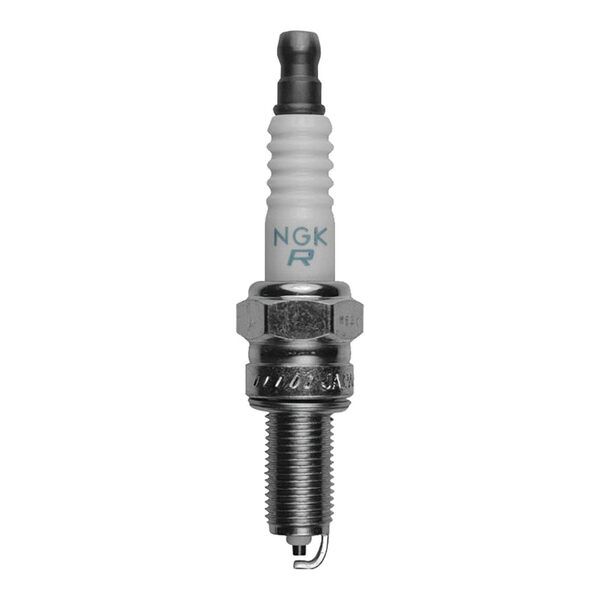

NGK standard plugs are constructed for longer life and optimum performance.

Features:

• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties.
• Corrugated ribs prevent flashover.
• Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer.
• Copper core aids in heat removal.
• Triple seals prevent leakage.

Specifications:

• Th read Diameter: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Reach: 19mm (3/4")
• Hex Size: 5/8" (16mm)
• Terminal Type: Solid
• Gap: .031" (0.8mm)
• Resistor: Yes
• Resistor Value: 5k Ohm
• Heat Range: 9

Centre Electrode:

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Projected

Ground Electrode:

• Material: Nickel
• Type: Standard
• Quantity: 1

Torque Specs:

• Cast Iron: 7.2-10.8 lb. ft.
• Aluminium: 7.2-8.7 lb. ft.

Part Information:

• Brand: NGK/NTK
• Warranty: 60 Days
• Longevity: 30k Miles
