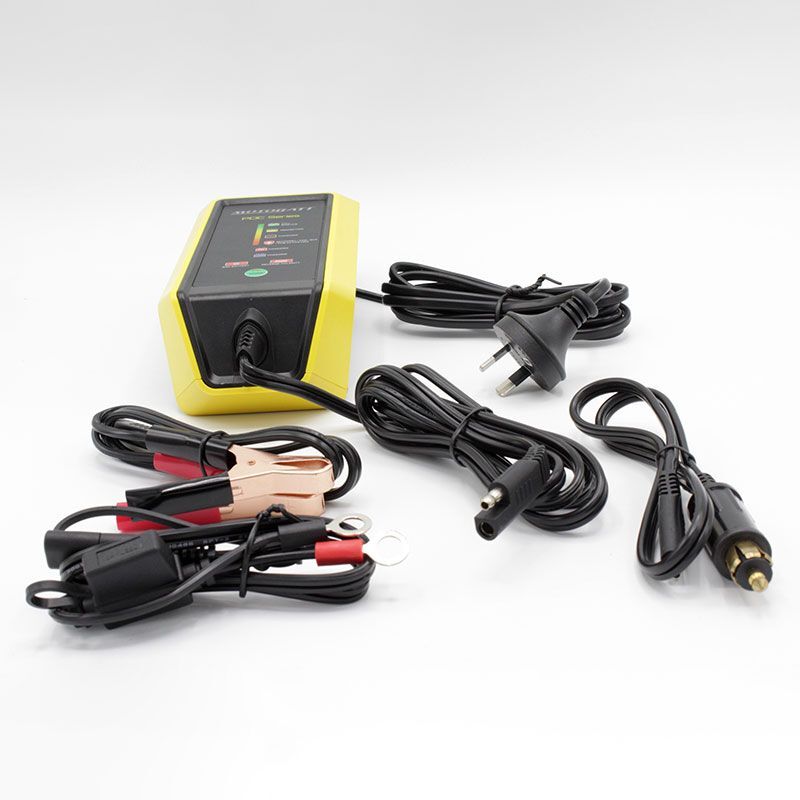

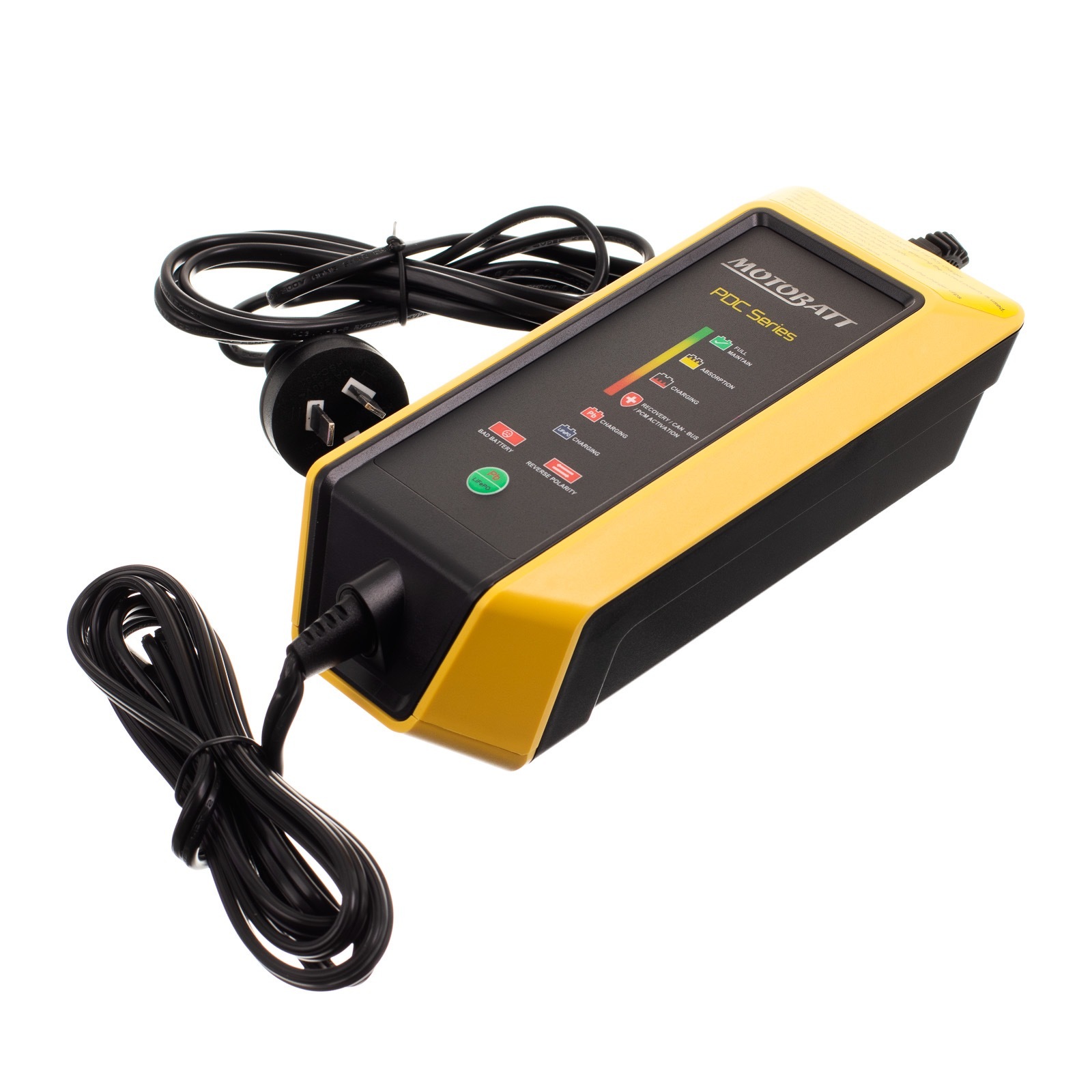

Motobatt Charger PDC Fat Boy 2.0A 9 Step & Lithium CANBUS
In Stock
Founded in 2008 Motobatt is a manufacturer of premium Powersports batteries battery chargers and battery related accessories. Motobatt is the creator andholds patents all over the world for the Motobatt 4 terminal battery thatfacilitates flexible battery installation across a wide variety of vehicleswhile maintaining an OE like fit.
Features:
- 9 Step Algorithm
- Canbus Compatible
- Automatic Charging & Maintaining
- Overcharge Protection
- Reverse Polarity Protection (Lead-Acid Only)
- Short Circuit Protection (Lead-Acid Only)
- Spark Proof (Lead-Acid Only)
Specifications:
- Applicatio 12V AGM Lead-Acid & Lithium
- Input: Auto-switching 120-240VAC 50/60 Hz
- Input Cable: 6' 18AWG U.S. SPT-2 EU-H03VV Aust/NZ-H03VV
- Output: 12VDC 2A
- Max Charge Current: 2A
- Max Voltage: 14.9V (Lead-Acid) 14.6V (Lithium)
- Battery Capacity: 4-100Ah (Lead-Acid) 2-20Ah (Lithium)

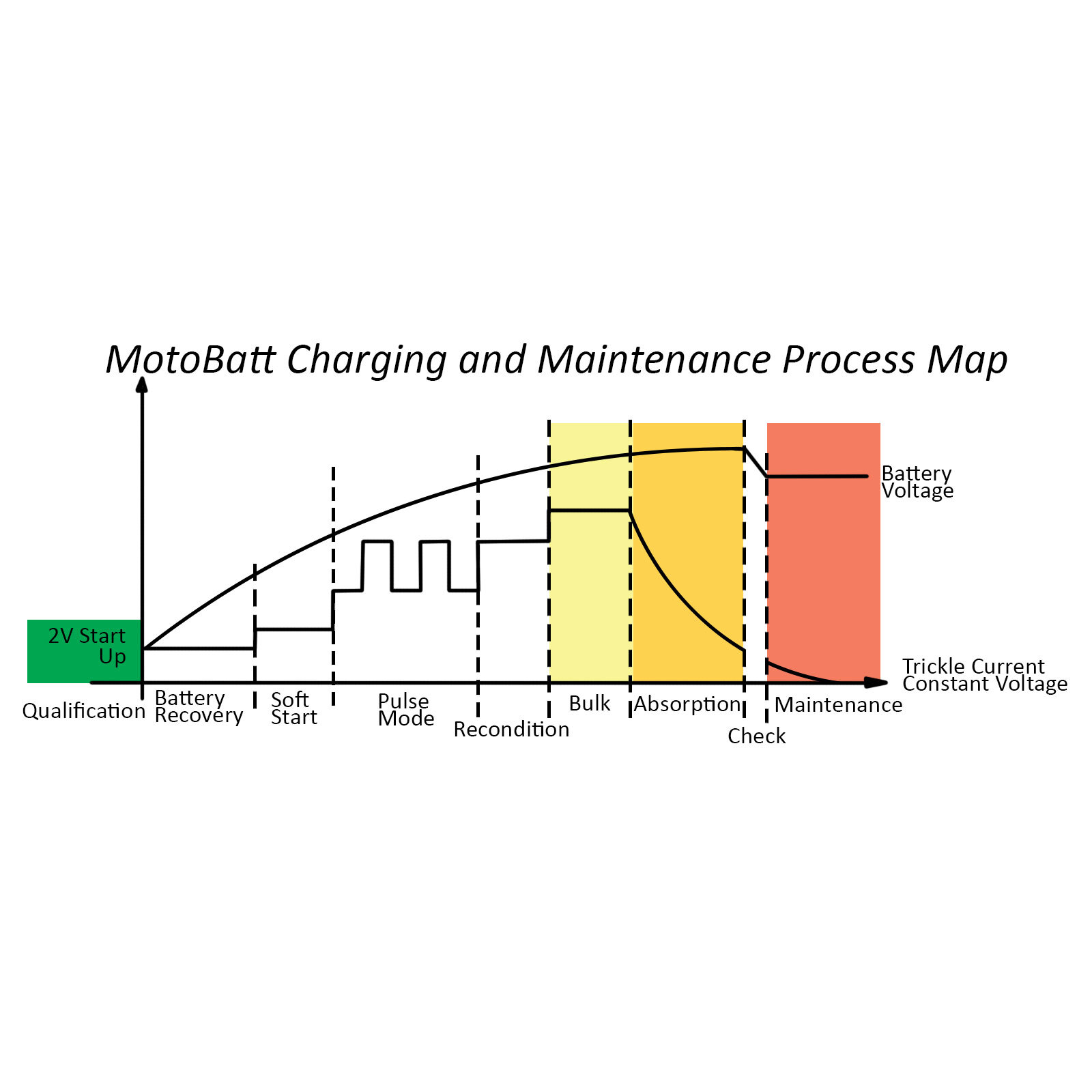

Motobatt chargers utilise Motobatt’s unique 9 Stage Charging andMaintenance Process.
Qualification Phase:
Initially ensures that the battery is in good condition prior to launchingcharge processing. As a safety measure charge process will not begin if thebattery is below 2V.
Battery Rescue Phase:
Motobatt Battery Rescue starts if the battery voltage has risen unusuallyhigh in the early portion of the re-charge cycle. This is usually caused byplate sulfation. Once the battery rescue phase has succeeded in getting thebattery to accept power normal battery charging will begin.
Soft Start Phase:
Soft Start is used when the charger has detected a battery at a very lowinitial state of charge. Voltage and current are delivered at specified rates tohelp the battery to recover prior to entering Pulse charge mode.
Pulse Mode Phase:
(MBZCHPDCFB)
| SKU | MBZCHPDCFB |
| Barcode # | 6947310000000 |
| Brand | Motobatt |
| Unit Of Measure | each |
