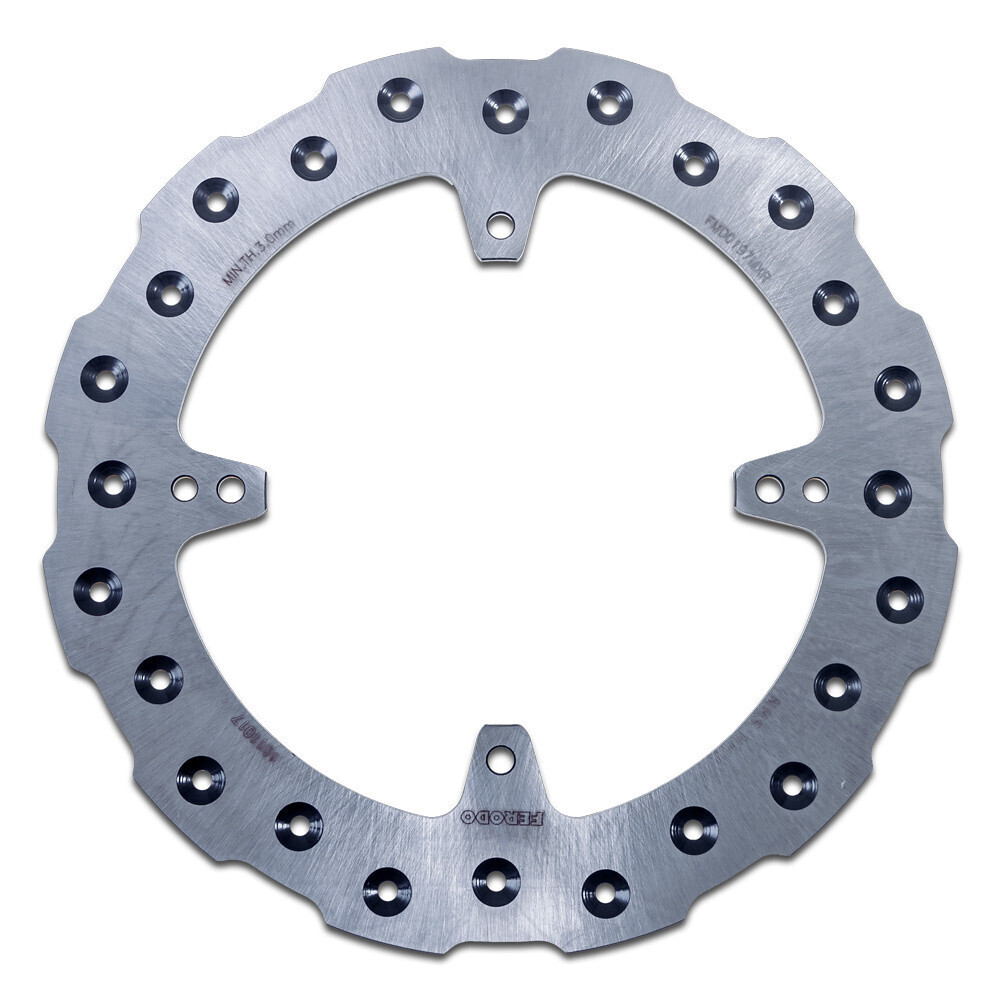

Features:

  • Stepped Outer Profile - To enhance heat dissipation and help resist warping at high temperatures.
  • Self Cleaning Design - Unique countersunk holes assist with the removal of dirt build-up on the brake pads and disc rotor.
  • Lightweight Design - Reduces unsprung weight effect.
  • Highest Quality - Machined from a high carbon grade of stainless steel and fully heat-treated for improved disc and pad wear life benefits.
  • Manufactured to ISO 9001 Standards to ensure a high quality product for competition and off-road applications.

Dimensions:

Details Values
OD - Outer Diameter 240.0 mm
ID - Inner Diameter 121.5 mm
PCD - Mounting Diameter 140.0 mm
Thickness 3.5 mm
Number of Mounting Holes 4
Mounting Hole diameter 6.5mm
Fixing Type Straight Mount

Notes:

  1. New brake disc rotors and brake pads (either front or rear) should be fitted by a qualified technician
  2. The Brake System comprising of master cylinder and caliper should be cleaned and serviced with new Hi Temp Racing Brake Fluid
  3. It is essential to follow the correct 'bed-in' procedure to achieve the best braking performance
  4. Caution - the new FERODO disc rotor should be thoroughly cleaned to remove the protective coating prior to fitment

(06-0197-50_5)

SKU 06-0197-50_5
Barcode # 4044197989997
Brand StatesMX
Unit Of Measure each
Modified Item No
Custom Bundle No
Machine Type Motorcycle
Placement on Vehicle Front
Product Type Brake Disc
Type Brake Disc
