But are they street-legal? Yes, the red circuit is an ECE R7 Certified Run/Brake light, and the amber turn signal circuit is an ECE R6 Certified Turn Signal. The lamps are brighter than US DOT regulations but do not meet FMVSS108 due to their compact footprint (an intentional design choice to maximise the intensity in the smallest package possible).

T3-S pods are Certified Hex ezBUS Ready, meaning they are specifically engineered to operate with CANsmart and ezCAN controllers. For universal applications, where CANsmart controllers are not available, use our standard T3 pods that connect directly to the vehicle run, brake, and turn circuits.

Features:

• Next-generation LIN-smart Electronics.

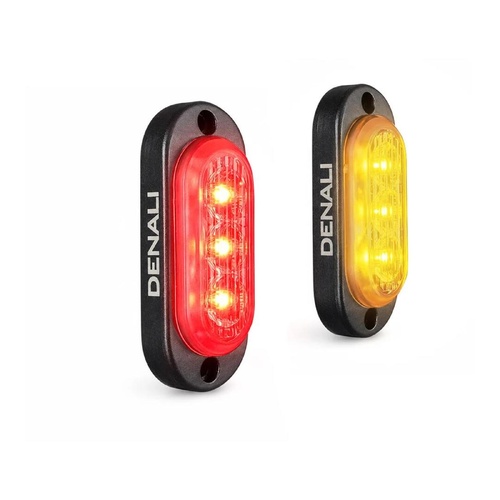

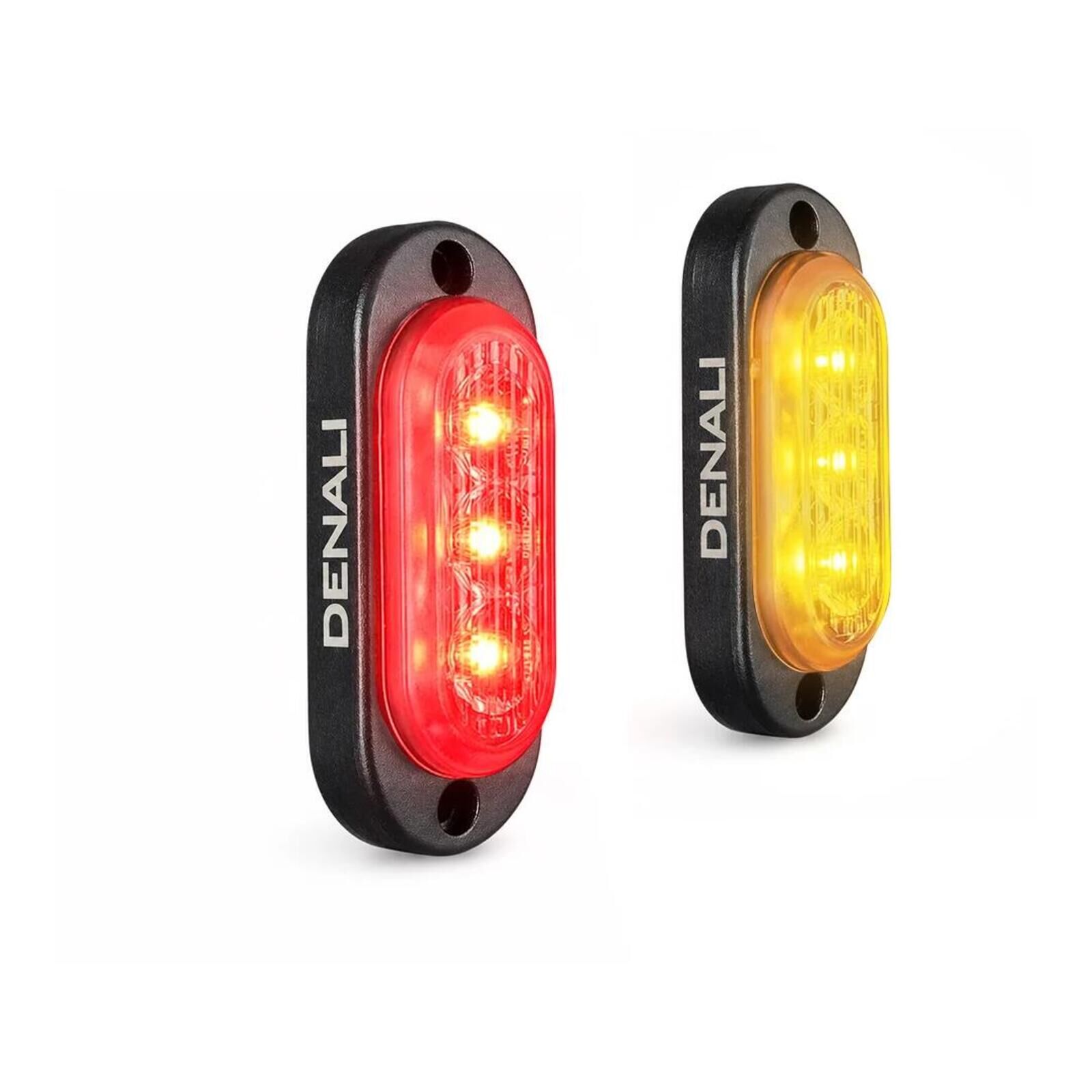

• Dual-color Switchback Functionality: Red Run/Brake, Amber Turn
• 180-Degree Viewing Angle yet Low Profile Design
• Single Channel Plug-and-Play to DENALI CANsmart™
• Intelligent Brake and Deceleration Signalling.

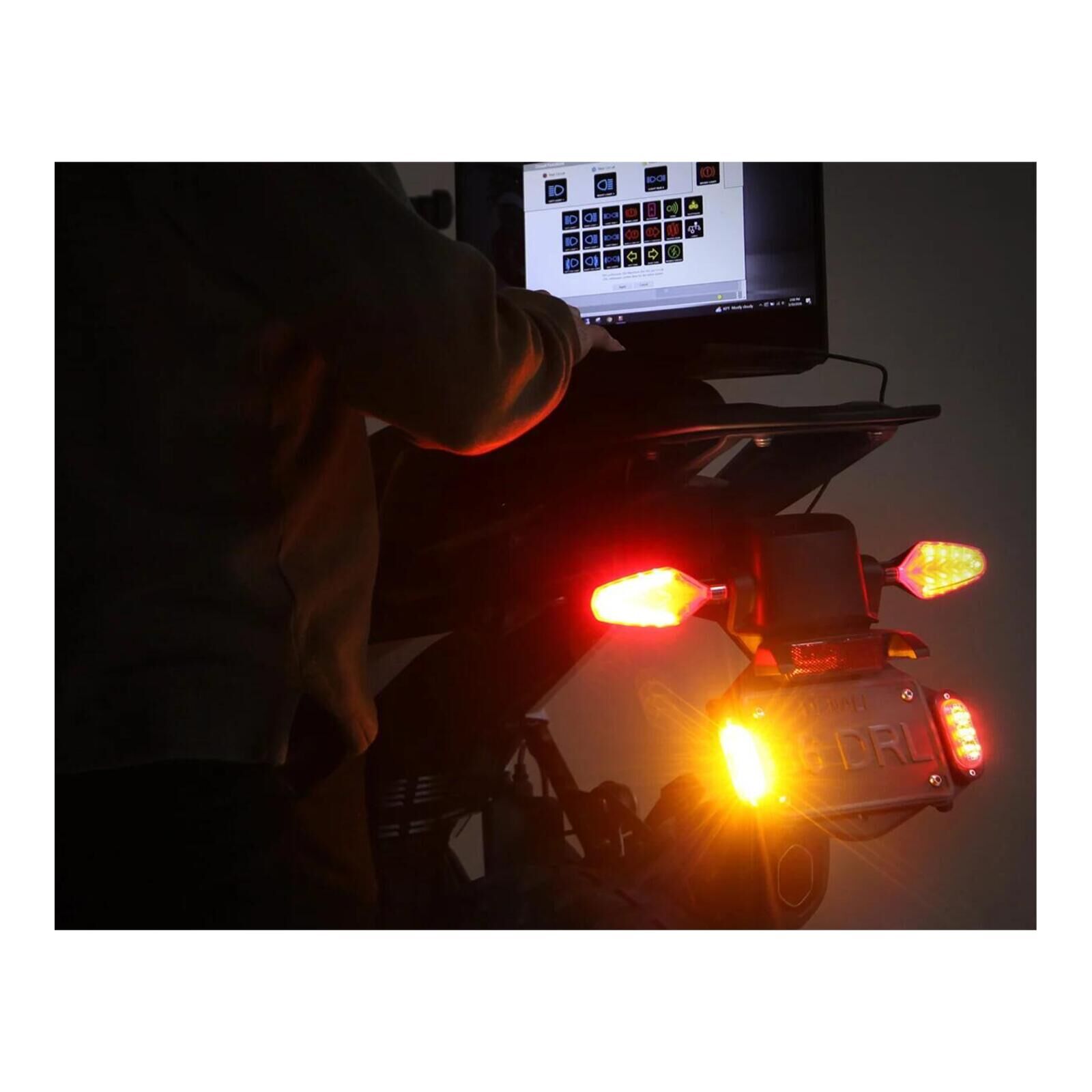

• Customizable Flash Patterns and Dimming.
• Modular Mounting System.
• IP69 Waterproof Submersible.
• ECE R6 and R6 Certified Run/Brake and Turn Beams.
• CANsmart wiring adapter included.

Specifications (Single Pod):

• Total Power Draw: 0.06A Run, 0.25A Brake, 0.55A Turn Signal
• Input Voltage: 12V DC
• Size: 2.9" x 1.13" x 0.5"
• Wire Length: 30"
• Weight: 0.08 lbs
• Raw Lumens: 870
• Waterproof: IP69 Submersible and High-Pressure Spray

What’s Included:

• (2x) T3-S Smart Rear Signal Pods
• (1x) Plug-and-play CANsmart Wiring Adapter
• Mounting Hardware
• Installation instructions
