Introducing the brightest and most durable motorcycle driving lights at an affordable price. Developed from a decade of customer feedback, the DENALI DL Series delivers powerful beam performance, exceptional durability and signature dimming technology at an accessible price point.

Single-piece TIR optics and robotically sealed construction reduce component count, assembly time and production costs without compromising LED quality, circuitry or optical design. The result is a durable, submersible light pod offering excellent light output for the price. All DL Series lights are available with white, amber or selective yellow beams and are plug-and-play compatible with DENALI lighting harnesses and controllers.

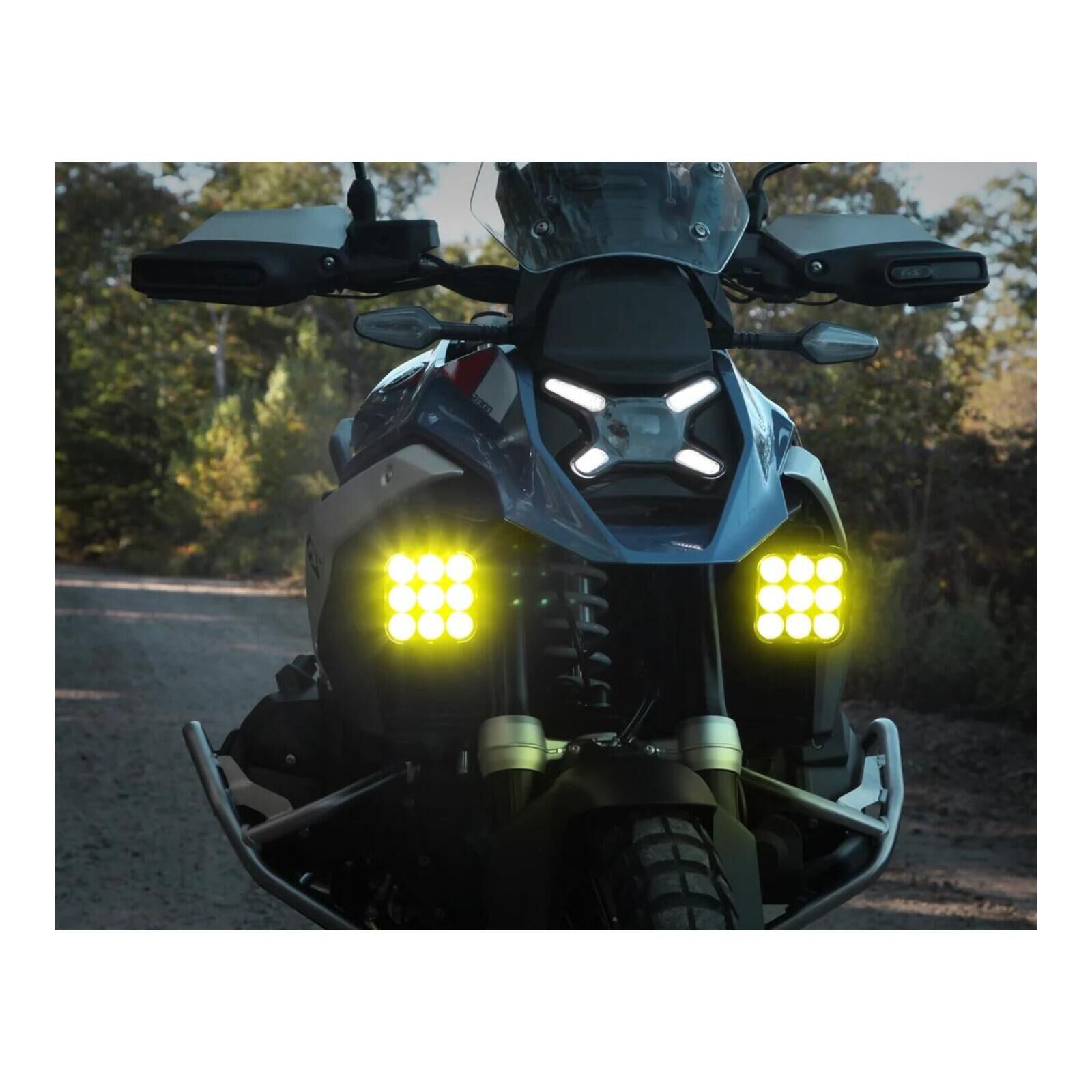

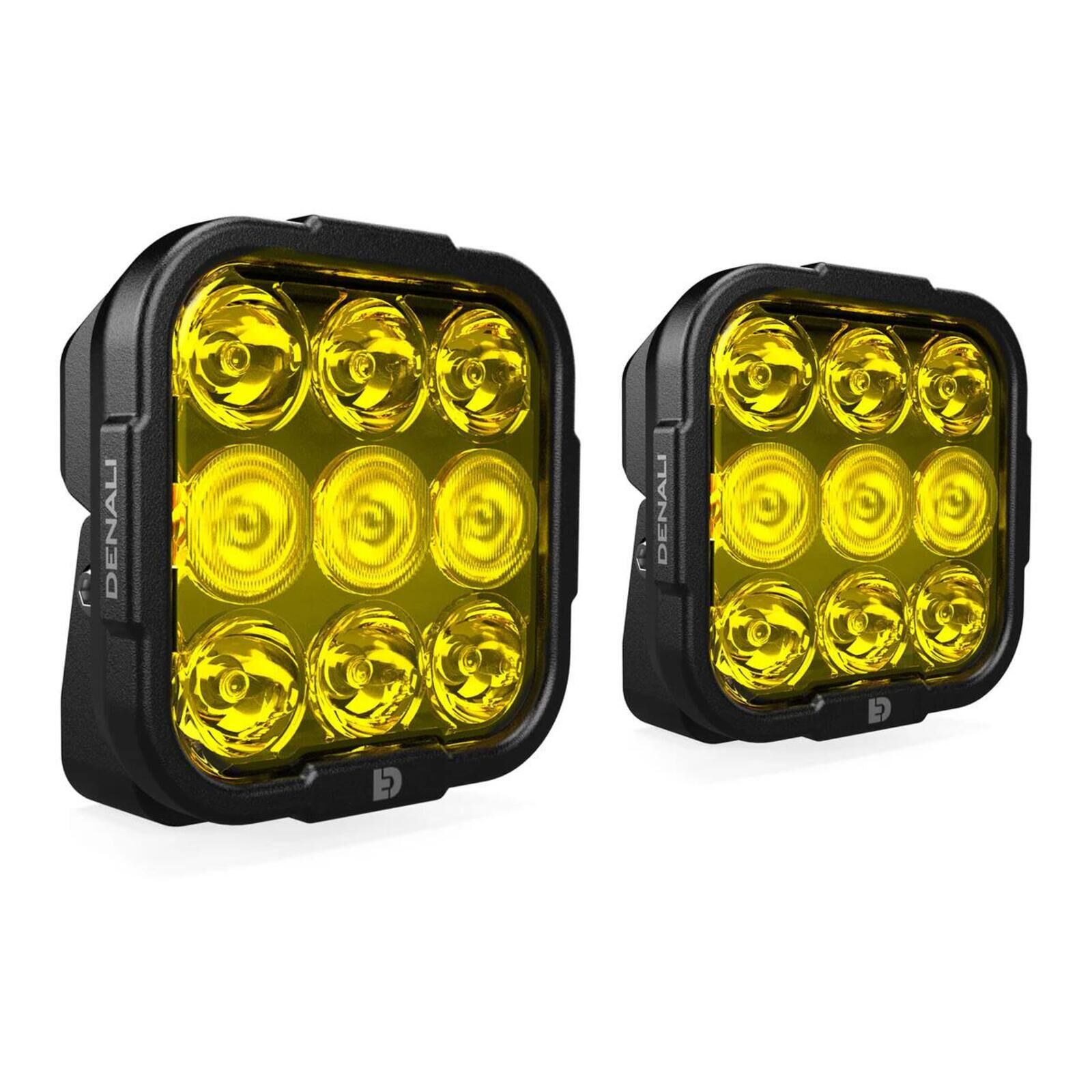

The DL9 is a powerful, nine-LED driving light designed for maximum illumination rather than a compact profile. Its large square housing is best suited to heavyweight adventure motorcycles that need high light output at an affordable price.

Features:

• HiDrive LEDs – 15,300 Lumens Per Pair: Top-bin Cree LEDs, driven at 8 watts each, deliver powerful illumination from a robust nine-LED square housing.
• Oversized TIR Optics – Hybrid Driving Beam: Proprietary TIR optics distribute light more efficiently than traditional reflector optics, delivering excellent beam distance and width in a compact design.
• DataDim™ Plug-and-Play Dimming: The three-wire design provides dedicated dimming wiring for reliable operation and plug-and-play compatibility with DENALI light harnesses, DialDim and CANsmart controllers.
• DrySeal™ Sealed Beam Construction: Patented robotic lens sealing and internal potting at the cable entry provide waterproof, submersible performance, even when connectors are removed.
• Overbuilt, Not Overpriced: Durable 4 mm powder-coated steel brackets and a robust heatsink provide a 21 G vibration rating. Polycarbonate lenses feature a UV-resistant hard coating.
• ECE-Compliant Driving Beam: The hybrid driving beam is ECE-certified for street-legal use as a primary or auxiliary high beam in the European Union. Yellow and amber lenses are not approved for street-legal high-beam use.

Specifications (Single / Pair):

• LEDs: Cree XPL HI (8 W each)
• Power Consumption: 72 W | 144 W
• Current Draw: 6 A | 12 A
• Raw Lumens: 7,650 | 15,300
• Beam Distance: 1,380 ft (421 m) | 1,835 ft (560 m)
• Beam Width: 230 ft (70 m) | 306 ft (93 m)
• Connector: DataDim-compatible 3-wire DT
• Colour Temperature: 6000 K
• Operating Voltage: 9–32 V DC
• Pod Dimensions: 4.5 × 4.5 in rectangular housing, 2 in deep
• Pod Weight: 2.2 lb | 4.4 lb
• IP Rating: IP68 and IP69K – waterproof, submersible and resistant to high-pressure spray
• Beam Certification: ECE R149 driving beam (auxiliary high beam)
• EMC Compliance: R10, CISPR 25, CE and UKCA

What's Included:

• Single Light Pod:
  • 1 × light pod with mounting hardware
  • 1 × 3-wire pigtail
• Pair of Light Pods:
  • 2 × light pods with mounting hardware and 3-wire pigtails
