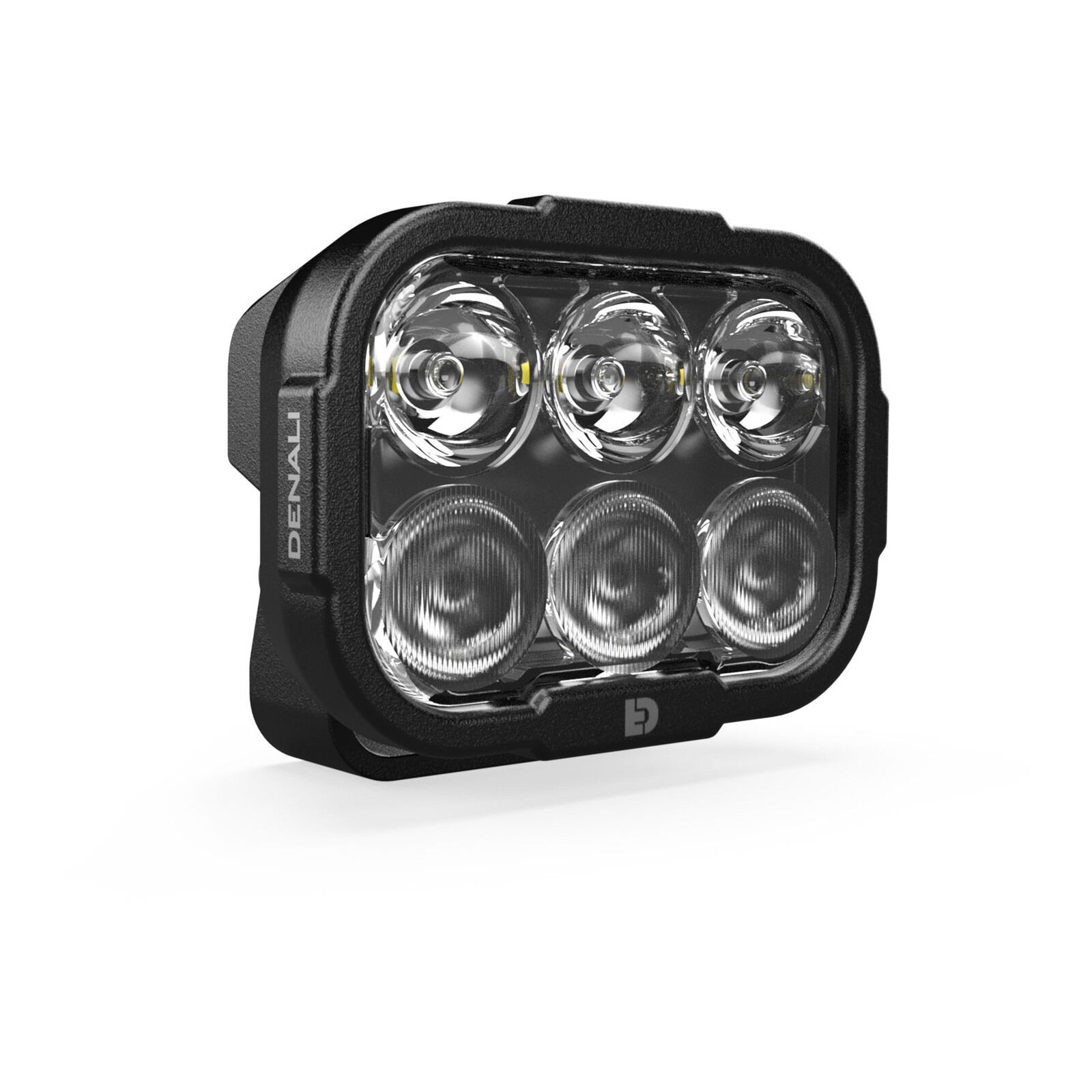

The DENALI DL6 is part of the DL Series, a range of high-performance, durable motorcycle driving lights designed to deliver excellent beam performance and signature dimming technology at an accessible price.

Featuring a single-piece TIR optic and robotically sealed construction, the DL Series reduces component count and manufacturing costs without compromising LED quality, circuitry or optical design. The result is a durable, submersible light pod designed to deliver outstanding performance and value. DL Series lights are available with white, amber or selective yellow beam options and are plug-and-play compatible with DENALI lighting harnesses and controllers.

The DL6 features a distinctive rectangular profile, making it one of the most compact, low-profile driving lights in its output class. Its size and shape make it an ideal primary auxiliary driving light for medium to large motorcycles.

Features:

• HiDrive LEDs – 10,200 Lumens per Pair: Top-bin Cree LEDs, driven at 8 W each, deliver powerful illumination in a robust nine-LED housing.
• Oversized TIR Optics – Hybrid Driving Beam: Proprietary TIR optics distribute light more efficiently than traditional reflector optics, delivering excellent beam distance and width in a compact housing.
• DataDim™ Plug-and-Play Dimming: The three-wire design uses dedicated dimming wiring for reliable performance and plug-and-play compatibility with DENALI light harnesses, DialDim and CANsmart Controllers.
• DrySeal™ Sealed Beam Construction: Robotic lens sealing and internal potting at the cable entry provide waterproof, submersible protection, even when connectors are removed.
• Built Tough: Features 4 mm-thick powder-coated steel brackets, a robust heatsink rated to withstand 21 G of vibration, and polycarbonate lenses with a UV-resistant hard coating.
• ECE-Compliant Driving Beam: The hybrid driving beam is ECE-certified for street-legal use as a primary or auxiliary high beam in the European Union. Amber and yellow lenses are not approved for street-legal high-beam use.

Specifications (Single/Pair):

• LEDs: Cree XPL HI (8 W each)
• Power: 48 W | 96 W
• Current draw: 4 A | 8 A
• Raw light output: 5,100 | 10,200 lumens
• Beam distance: 1,000 ft (305 m) | 1,330 ft (406 m)
• Beam width: 203 ft (62 m) | 270 ft (82 m)
• Connector: DataDim-compatible three-wire DT
• Colour temperature: 6,000 K
• Operating voltage: 9–32 V DC
• Pod dimensions: 3 × 4.5 in rectangular × 2 in deep
• Pod weight: 1.5 lb | 3 lb
• Waterproof rating: IP68 and IP69K; submersible and resistant to high-pressure water spray
• Beam certification: ECE R149 driving beam (auxiliary high beam)
• EMC compliance: R10, CISPR 25, CE and UKCA

Wiring and Switching Options

Customise your DENALI lighting kit by selecting the wiring harness and lighting control option that best suits your vehicle and budget. Choose one of the following options to complete your installation.

• Standard Powersports Harness: A robust, affordable harness with a low-profile waterproof switch, ideal for basic single-intensity installations.
• Standard Automotive Harness: Features a durable, extended-length harness and an illuminated flush-mount rocker switch for dashboard installation.
• Premium Powersports Harness: Includes overmoulded wiring and a premium illuminated switch with a handlebar mounting kit.
• DataDim™ Module: Add this dimmer module to a compatible harness to synchronise light intensity with your factory high-beam switch.
• DialDim Lighting Controller: Independently switch and dim two sets of lights using a single halo dimmer switch. Additional features include high/low synchronisation, strobing with the horn, flashing with indicators, indicator cancellation, electronic fuse settings and battery voltage monitoring.

What's Included?

• Single light pod:
  • 1 × light pod with mounting hardware
  • 1 × three-wire pigtail
• Pair of light pods:
  • 2 × light pods with mounting hardware
  • 2 × three-wire pigtails

Light pods and wiring harnesses are packaged separately in their respective retail boxes.

Compatibility: DL Series lamps are not compatible with the DENALI fender mount LAH.00.10700.B.

Note: The light pods and harness options are packaged separately in their respective retail packaging.
