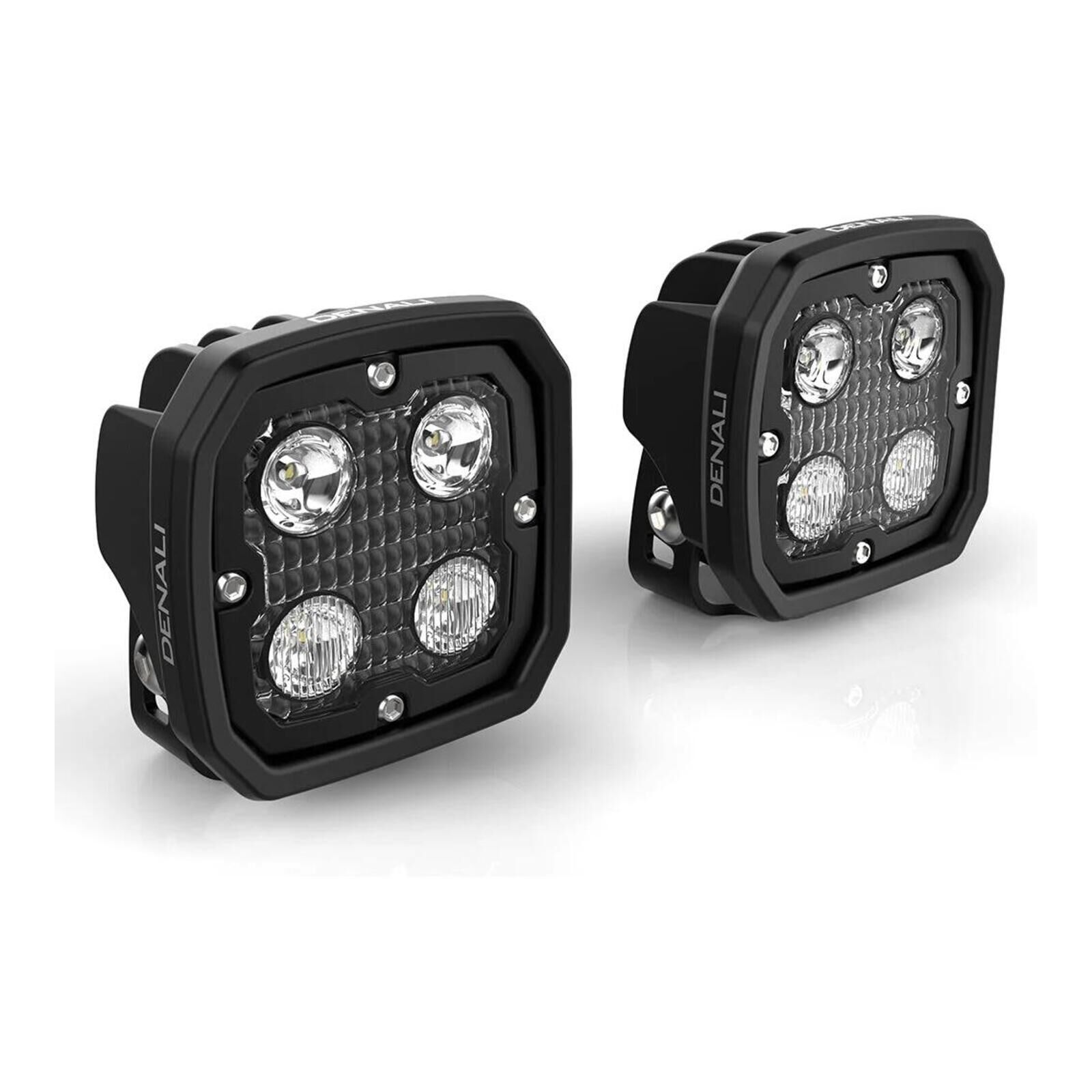

The DENALI D4 is DENALI's most powerful light, delivering up to 8,760 raw lumens per pair in aggressively styled housings. The installed hybrid lens combines two elliptical flood lenses and two spot lenses to create a versatile beam pattern, with a wide close-range flood and a powerful spot beam in one housing. The included pair of spot lenses projects a beam up to 800 feet and carries official E-Mark certification.

The TriOptic™ Lens System features a factory-installed hybrid lens and an additional spot lens for each pod, with optional flood lenses available to create three beam patterns when used as a pair: Spot, Flood or Hybrid.

Optional amber or selective yellow lenses are available to improve visibility in adverse weather conditions and help make your vehicle more visible to other motorists.

More Flexibility, Maximum Control

Customise your DENALI D4 lighting kit by choosing the wiring harness and lighting control option that best suits your vehicle and budget. Select one of the options below to complete your lighting kit.

• Standard Powersports Harness: A robust, low-profile, waterproof switch and an affordable option for a basic single-intensity installation.
• Standard Automotive Harness: A robust harness with additional length and an illuminated flush-mount rocker switch for dashboard installation.
• Premium Powersports Harness: Features overmoulded wire and a premium illuminated switch with a handlebar mounting kit.
• DataDim™ Module: Add this dimmer module to a compatible harness to synchronise light intensity with your factory high-beam switch.
• DialDim Lighting Controller: Independently switch and dim two sets of lights using a single halo dimmer switch. Additional features include high/low synchronisation, strobing with the horn, flashing with indicators, indicator cancellation, electronic fuse settings and battery voltage monitoring.

The DENALI CANsmart™ Controller offers extensive customisation for LED lighting and other electrical accessories, including horns, heated grips, dash cameras and GPS units.

Features

• High-intensity Cree LEDs deliver 8,760 raw lumens per pair.
• TriOptic™ Multi-Beam Lens System offers Spot, Flood and Hybrid beam options.
• DataDim™-equipped light pods support plug-and-play connection and integrated dimming with compatible DENALI dimming and lighting controllers.
• DrySeal™ waterproof housings are submersible and designed for extreme environments.
• Impact PC™ polycarbonate bezels resist cracking, fading and corrosion.
• LiveActive™ Thermal Management helps prevent overheating and loss of light output.
• Low-profile mounting brackets and stainless steel hardware included.
• Additional pair of E-Mark-approved spot lenses included.
• Interchangeable lenses available in clear, amber and selective yellow.

D4 Pod Specifications (Pair)

• LEDs: 8 × 10 W Cree XPL HI
• Power draw: 6.6 A
• Spot beam distance: 800 ft (244 m)
• Spot beam width: 110 ft (34 m)
• Raw light output: 8,760 lumens
• Intensity: Single intensity with a compatible harness
• DataDim™ compatible: Yes
• Operating voltage: 12 V DC
• Pod dimensions: 3.9 in square × 2.6 in deep (each)
• Pod weight: 1.55 lb (each)
• Waterproof rating: IP67, waterproof and submersible
• Certification: E-Mark-approved spot lenses

D4 Product Bundles – What's Included?

The standard pair option includes two light pods with clear hybrid lenses installed. An additional set of amber or selective yellow lenses is included if selected.

You can also choose to add a compatible wiring harness or lighting controller.

Products in the bundle are packaged in separate retail boxes and may ship separately. See below for the contents of each light pod and lens kit.

D4 Light Pod Box Contents – DNL.D4.050

• 1 × LED light pod
• 1 × hybrid lens (installed)
• 1 × spot lens
• 1 × M8 mounting hinge with stainless steel mounting hardware
• 1 × wiring pigtail

D4 Lens Kit Box Contents – DNL.D4.10100 (Amber) / DNL.D4.10200 (Yellow)

• 2 × spot lenses in the selected colour
• 1 × flood lens in the selected colour
