The DENALI D3 LED Fog Light Kit builds on a decade of DENALI innovation to deliver high-performance, street-legal fog lighting. Its proprietary fog optics are engineered to maximise beam distance within the regulated candela limits for North American SAE/DOT and European Union ECE lighting standards.

The result is a crisp, wide fog beam that reaches up to 450 feet long and 300 feet wide at 1 lux per pair. For riders and drivers seeking greater long-distance illumination, the D3 is also available with DENALI's TriOptic™ beam system, featuring spot and hybrid beam options in the same kit.

Optional amber and selective yellow lenses are available to improve visibility in adverse weather conditions and increase conspicuity to other road users.

Features:

• Street-legal fog beam certified to SAE/DOT and ECE standards.
• High-intensity Cree LEDs producing 2,800 lumens per pod.
• DataDim™ three-wire smart-dimming technology compatible with DENALI dimming controllers.
• DrySeal™ submersible, waterproof housing designed for extreme environments.
• Impact PC™ polycarbonate bezels resist cracking, fading and corrosion.
• LiveActive™ thermal management helps prevent light output loss from overheating.
• Low-profile mounting brackets with stainless steel hardware included.
• Optional amber and selective yellow lenses available.

Beam Performance (Pair):

• Beam distance at 1 lux: 450 feet (137 metres).
• Beam width at 1 lux: 300 feet (91 metres).

Specifications (Single Pod):

• Dimensions: 3.5-inch (90 mm) round × 3.0-inch (76 mm) deep.
• LEDs: 4 × 11 W Cree XP-P LEDs.
• Power consumption: 40 W (3.3 A).
• Light output: 2,800 lumens.
• DataDim™ compatible: Yes.
• Operating voltage: 9–32 V DC.
• Waterproof rating: IP67; submersible.
• Fog lens certification: SAE/DOT J583 and ECE R19 for clear lenses only. Amber and selective yellow lenses are not SAE/DOT- or ECE-certified.

Wiring and Switching Options:

Customise your DENALI lighting kit with a wiring harness and lighting control system suited to your vehicle and installation requirements. Choose from the following options:

• Standard Powersports Harness: A robust, compact, waterproof switch for basic single-intensity lighting installations.
• Standard Automotive Harness: Extended wiring and an illuminated, flush-mount rocker switch for dashboard installation.
• Premium Powersports Harness: Overmoulded wiring and a premium illuminated switch with a handlebar mounting kit.
• DataDim™ Module: Enables the lights to change intensity in sync with your factory high-beam switch when paired with a compatible harness.
• DialDim™ Lighting Controller: Independently switches and dims two sets of lights using a single halo dimmer switch. Additional features include high/low synchronisation, horn-activated strobing, turn-signal integration, electronic fuse settings and battery voltage monitoring.

The DENALI CANsmart™ Controller is also available as a comprehensive accessory management solution. It provides customisable control of LED lights and can power and manage other electrical accessories, including horns, heated grips, dash cameras and GPS units.

Product Bundles – What's Included?

This product page allows you to customise your lighting kit. Light pods, coloured lens kits and wiring harnesses are packaged separately and may ship in separate boxes.

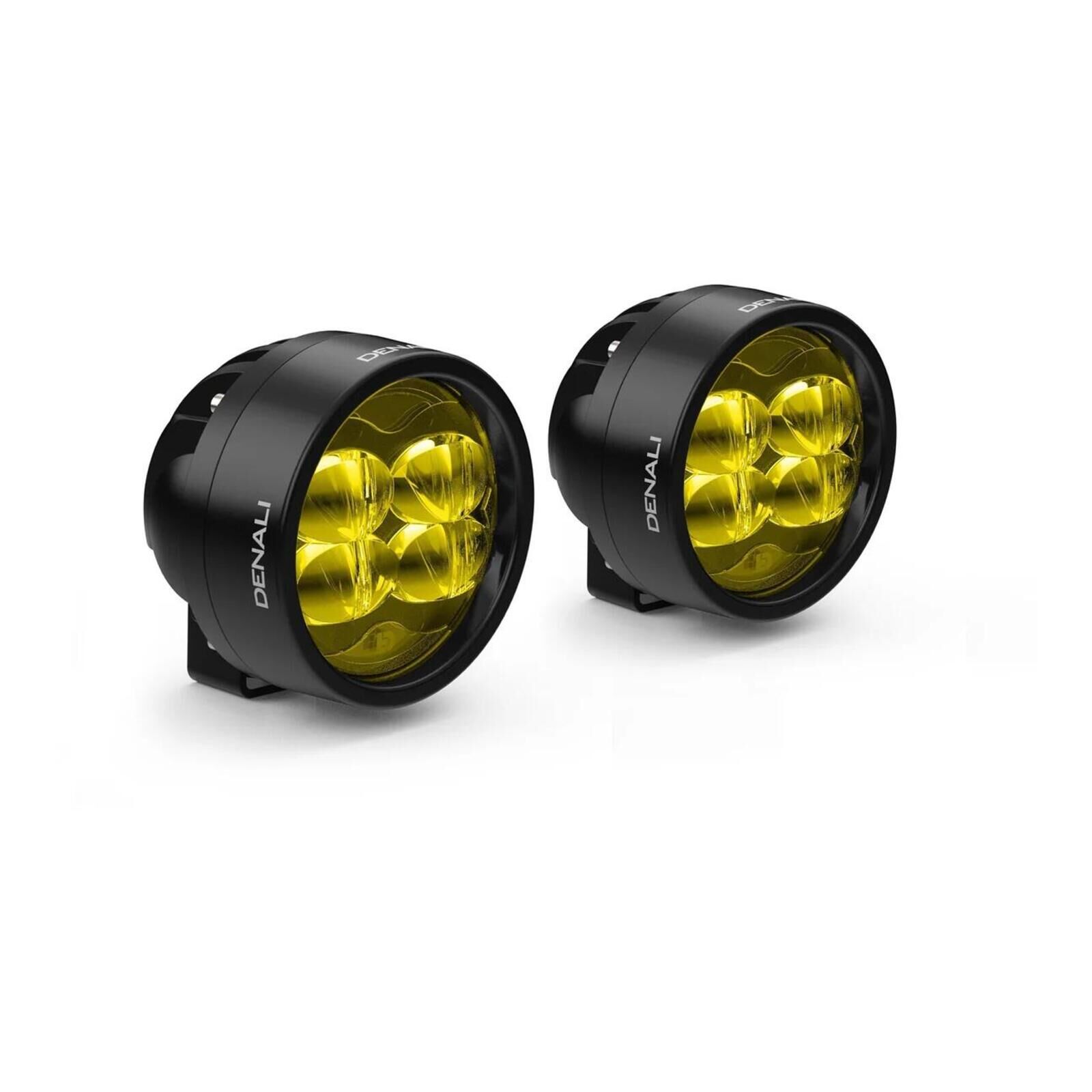

Light Pod Box Contents (DNL.D3.051):

• 2 × D3 LED fog light pods.
• 1 × set of hinge mounts with M8 stainless steel mounting hardware.
• 1 × wiring pigtail.

Lens Kit Box Contents:

• Amber lens kit: DNL.D3.10400.
• Selective yellow lens kit: DNL.D3.10500.
• 2 × fog lenses in the selected colour.
