The DENALI D3 LED Driving Light Kit builds on a decade of DENALI innovation, delivering a high-performance 36-watt driving light designed for exceptional visibility on and off the road. Each pod features the TriOptic™ Lens System, which includes a spot lens and a hybrid driving lens for versatile beam configurations.

The D3 hybrid driving beam is SAE/DOT and ECE compliant, providing a street-legal high beam for applicable North American and European Union markets. For maximum off-road performance, the spot lens projects light over 1,900 feet at 1 lux per pair, delivering impressive long-distance visibility in a compact housing.

Optional amber and selective yellow lenses are available to improve visibility in adverse weather conditions or increase conspicuity to other road users. The D3 is also available in a dedicated SAE- and ECE-certified fog light version, featuring a wide beam with a sharp horizontal cut-off.

Features:

• TriOptic™ Lens System includes spot and hybrid lenses with each pod.
• SAE/DOT- and ECE-certified hybrid driving beam for applicable street-legal applications.
• High-intensity Cree LEDs producing 2,100 lumens per pod.
• DataDim™ three-wire smart-dimming technology compatible with DENALI dimming controllers.
• DrySeal™ submersible, waterproof housing designed for extreme environments.
• Impact PC™ polycarbonate bezels resist cracking, fading and corrosion.
• LiveActive™ thermal management helps prevent light output loss from overheating.
• Low-profile mounting brackets with stainless steel hardware included.
• Additional SAE/DOT- and ECE-certified hybrid driving lenses included; spot lenses are installed by default.
• Optional amber and selective yellow lenses available.

Beam Performance (Pair):

• Spot Beam:
  • Beam distance at 1 lux: 1,910 feet (582 metres).
  • Beam width at 1 lux: 100 feet (30 metres).
• Combo Beam (1 Spot, 1 Hybrid):
  • Beam distance at 1 lux: 1,520 feet (463 metres).
  • Beam width at 1 lux: 175 feet (53 metres).
• Hybrid Beam:
  • Beam distance at 1 lux: 1,050 feet (320 metres).
  • Beam width at 1 lux: 225 feet (69 metres).

Specifications (Single Pod):

• Dimensions: 3.5-inch (90 mm) round × 2.62-inch (66 mm) deep.
• LEDs: 3 × 11 W Cree XP-P LEDs.
• Power consumption: 36 W (3 A).
• Light output: 2,100 lumens.
• DataDim™ compatible: Yes.
• Operating voltage: 9–32 V DC.
• Waterproof rating: IP67; submersible.
• Hybrid lens certification: SAE/DOT J581 and ECE R112 for clear lenses only. Amber and selective yellow lenses are not SAE/DOT- or ECE-certified.
• Spot lens certification: ECE R112.

Wiring and Switching Options:

Customise your DENALI lighting kit with a wiring harness and lighting control system suited to your vehicle and installation requirements. Select from the following options to complete your setup:

• Standard Powersports Harness: A robust, compact, waterproof switch for basic single-intensity lighting installations.
• Standard Automotive Harness: Extended wiring and an illuminated, flush-mount rocker switch for dashboard installation.
• Premium Powersports Harness: Overmoulded wiring and a premium illuminated switch with a handlebar mounting kit.
• DataDim™ Module: Enables the lights to change intensity in sync with your factory high-beam switch when paired with a compatible harness.
• DialDim™ Lighting Controller: Independently switches and dims two sets of lights using a single halo dimmer switch. Additional features include high/low synchronisation, horn-activated strobing, turn-signal integration, electronic fuse settings and battery voltage monitoring.

The DENALI CANsmart™ Controller is also available as a comprehensive accessory management solution. It provides customisable control of LED lights and can power and manage other electrical accessories, including horns, heated grips, dash cameras and GPS units.

Product Bundles – What's Included?

The standard pair option includes two D3 light pods with clear spot lenses installed and an additional set of amber or selective yellow lenses if selected. You can also add a compatible wiring harness to complete your lighting kit.

All bundle components are packaged in separate retail boxes and may ship separately. Individual box contents are listed below.

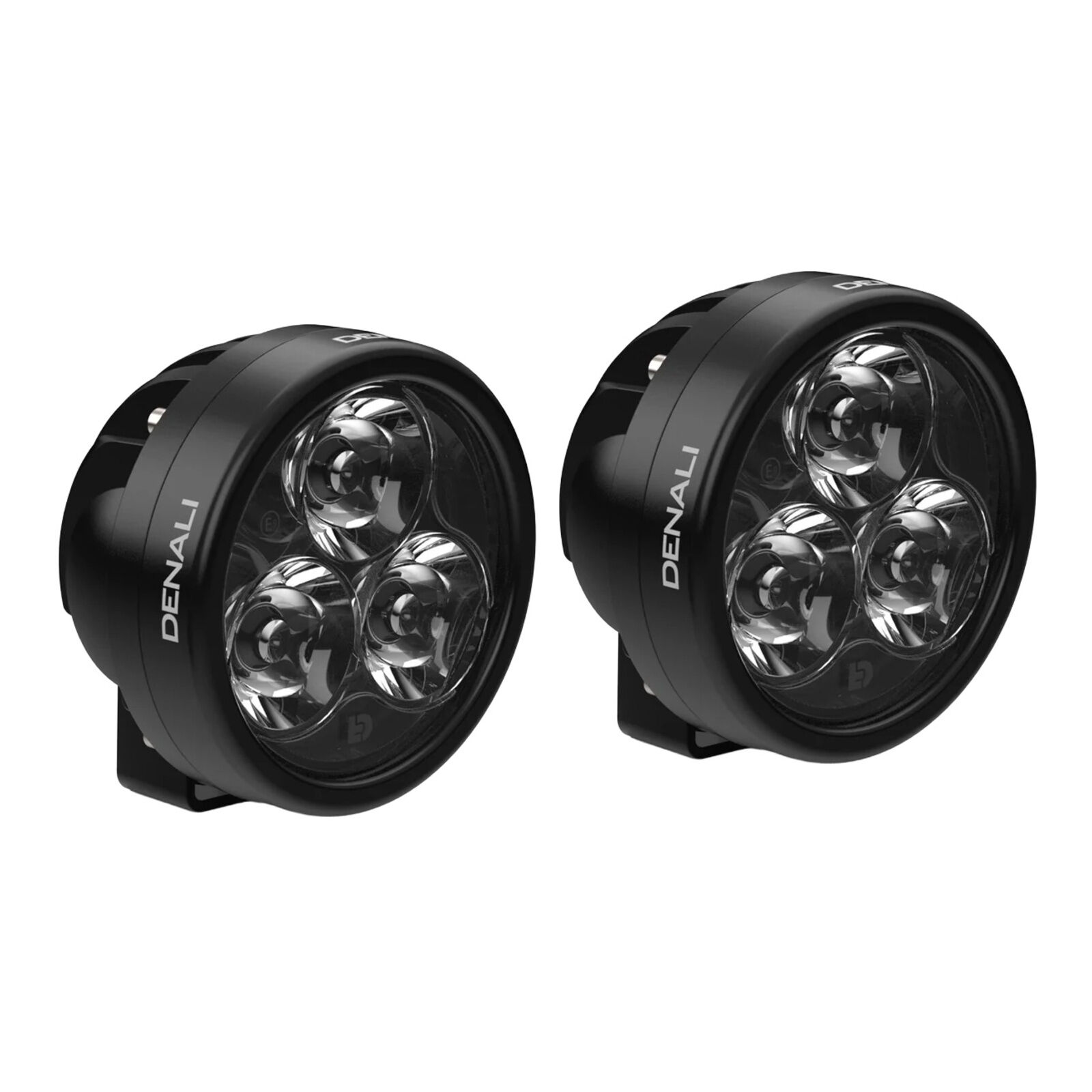

Light Pod Box Contents (DNL.D3.050):

• 1 × D3 LED light pod with spot lens installed.
• 1 × D3 hybrid lens.
• Hinge mounts with M8 stainless steel mounting hardware.
• 1 × wiring pigtail.

Lens Kit Box Contents:

• Amber lens kit: DNL.D3.10100.
• Selective yellow lens kit: DNL.D3.10200.
• 2 × spot lenses in the selected colour.
• 2 × hybrid lenses in the selected colour.
