The DENALI D2 LED Driving Light Kit delivers an impressive beam of light, balancing long-distance nighttime visibility with daytime conspicuity. Despite its compact size, the spot lenses project light up to 525 feet down the road, while the included E-Mark-approved flood lenses provide a beam up to 165 feet wide.

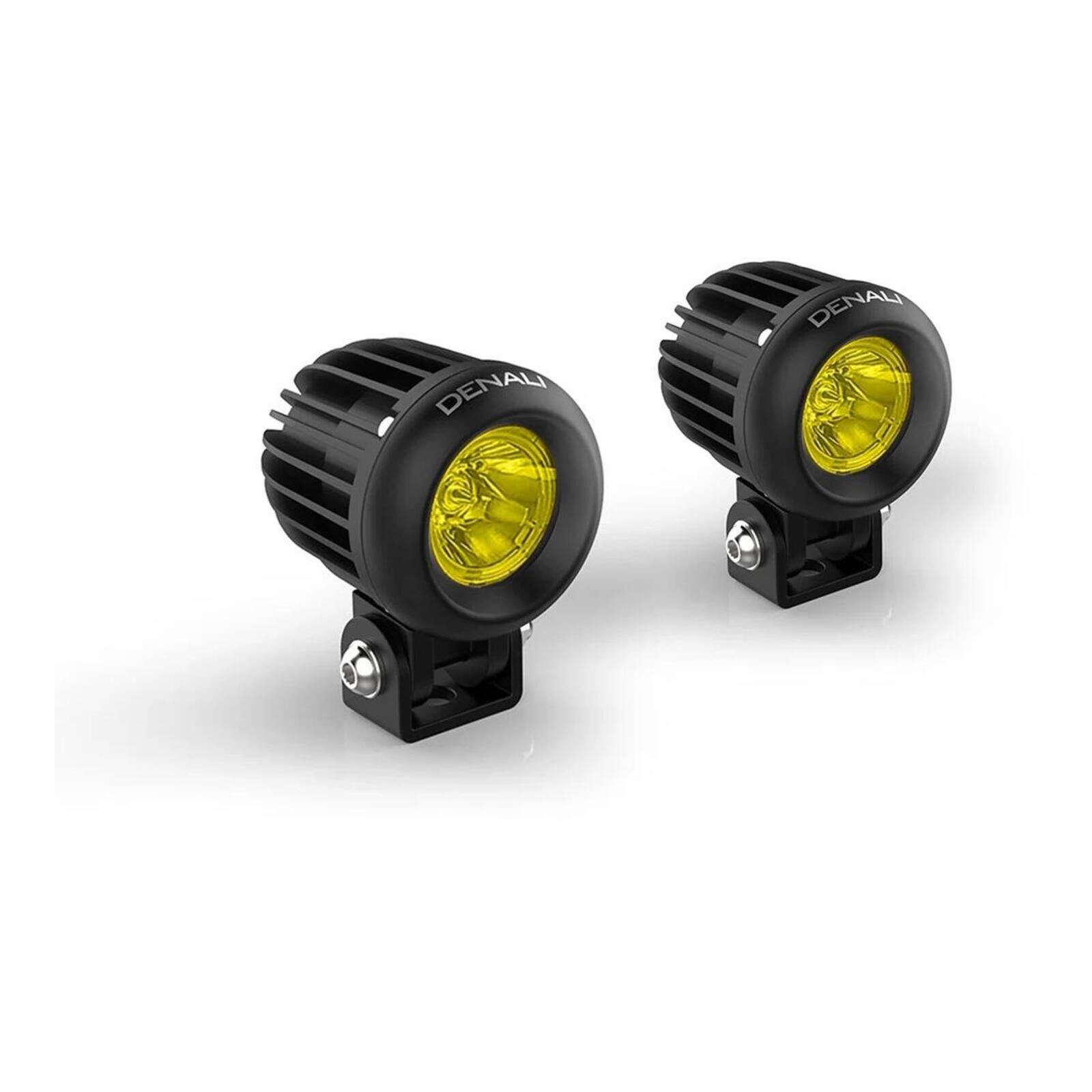

The TriOptic™ Lens System features factory-installed clear spot lenses and includes optional flood lenses, allowing you to configure three beam patterns when using the pods as a pair: Spot, Flood, or Hybrid. Optional amber or selective yellow lenses are also available to improve visibility in adverse weather conditions.

More Flexibility, Maximum Control

Customise your DENALI lighting kit with a wiring harness and lighting control option to suit your vehicle and budget. Choose from the following options to complete your installation:

• Standard Powersports Harness: A robust, compact, waterproof switch for basic single-intensity lighting installations.
• Standard Automotive Harness: Features extended wiring and an illuminated, flush-mount rocker switch for dashboard installation.
• Premium Powersports Harness: Includes overmoulded wiring and a premium illuminated switch with a handlebar mounting kit.
• DataDim™ Module: Enables the lights to switch intensity in sync with your factory high-beam switch when added to a compatible harness.
• DialDim™ Lighting Controller: Independently switches and dims two sets of lights using a single halo dimmer switch. Additional features include high/low synchronisation, horn-activated strobing, turn-signal integration, electronic fuse settings and battery voltage monitoring.

The DENALI CANsmart™ Controller is also available as a comprehensive accessory management solution. It offers customisable control of LED lights and can power and manage other electrical accessories, including horns, heated grips, dash cameras and GPS units.

D2 Light Pod Features:

• High-intensity Cree LEDs producing 2,190 raw lumens per pair.
• TriOptic™ multi-beam lens system with Spot, Flood and Hybrid beam options.
• DataDim™ compatibility for plug-and-play connection and integrated dimming with compatible DENALI controllers.
• DrySeal™ submersible, waterproof housings designed for extreme environments.
• Impact PC™ polycarbonate bezels designed to resist cracking, fading and corrosion.
• LiveActive™ thermal management helps prevent light output loss from overheating.
• Low-profile mounting brackets with stainless steel hardware included.
• Additional pair of E-Mark-approved flood lenses included.
• Interchangeable lenses available in Clear, Amber and Selective Yellow.

Specifications (Pair):

• LEDs: 2 × 10 W Cree XPL HI.
• Power draw: 1.6 A.
• Spot beam distance: 525 feet.
• Spot beam width: 75 feet.
• Raw light output: 2,190 lumens.
• DataDim™ compatible: Yes.
• Operating voltage: 12 V DC.
• Dimensions: 2.2-inch round × 2.4-inch deep per pod.
• Weight: 0.6 lb per pod.
• Waterproof rating: IP67; submersible.
• Flood lenses: E-Mark approved.

D2 Product Bundles – What's Included?

The standard pair option includes two D2 light pods with clear spot lenses installed. An additional set of amber or selective yellow lenses can be included when selected. You can also add one of the available wiring harness options to complete your lighting kit.

All bundle components are packaged in separate retail boxes and may ship separately. The individual box contents are listed below.

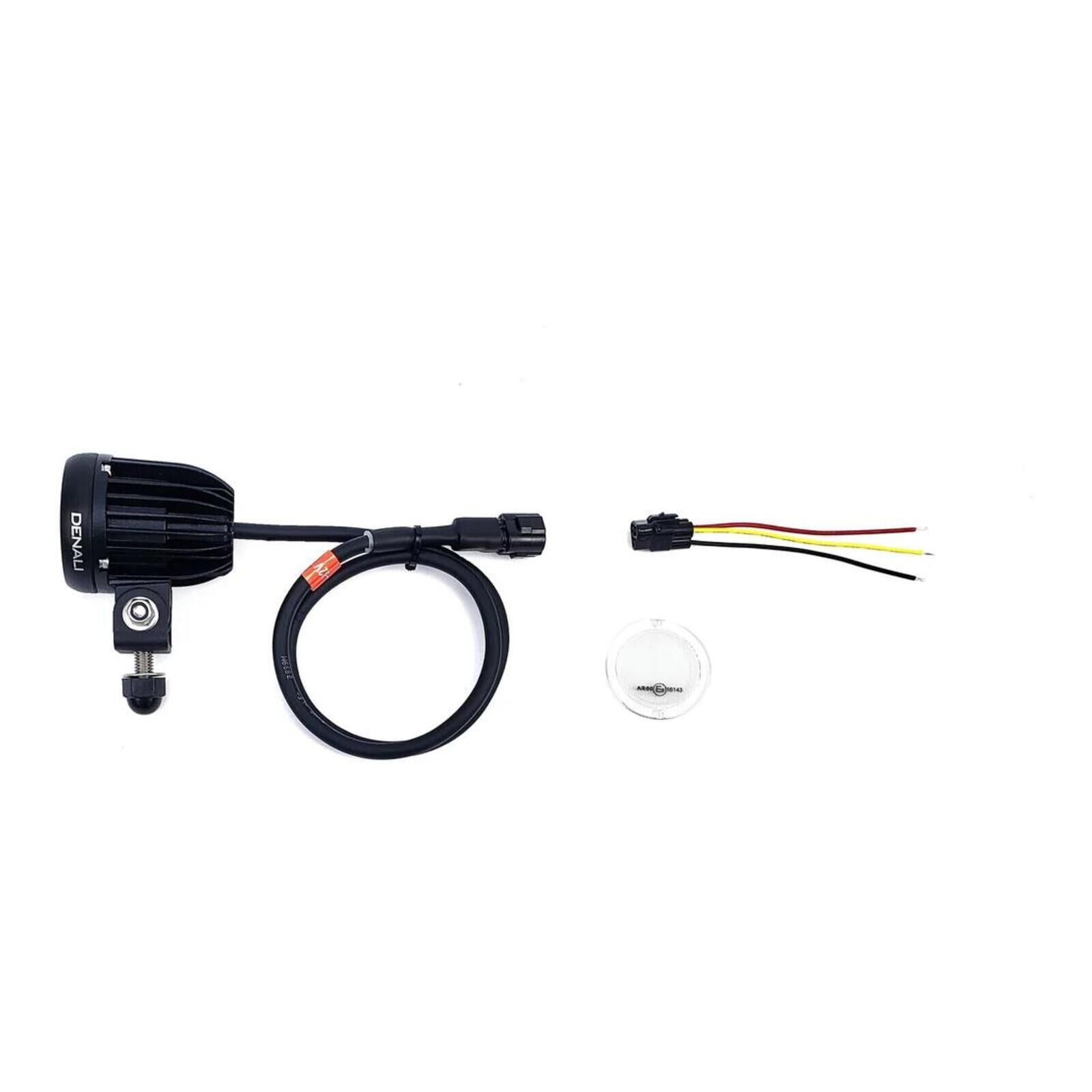

D2 Light Pod Box Contents (DNL.D2.050):

• 1 × LED light pod.
• 1 × spot lens (installed).
• 1 × flood lens.
• 1 × M8 mounting hinge with stainless steel mounting hardware.
• 1 × wiring pigtail.

D2 Lens Kit Box Contents:

• Amber lens kit: DNL.D2.10100.
• Selective yellow lens kit: DNL.D2.10200.
• 2 × spot lenses in the selected colour.
• 1 × flood lens in the selected colour.
