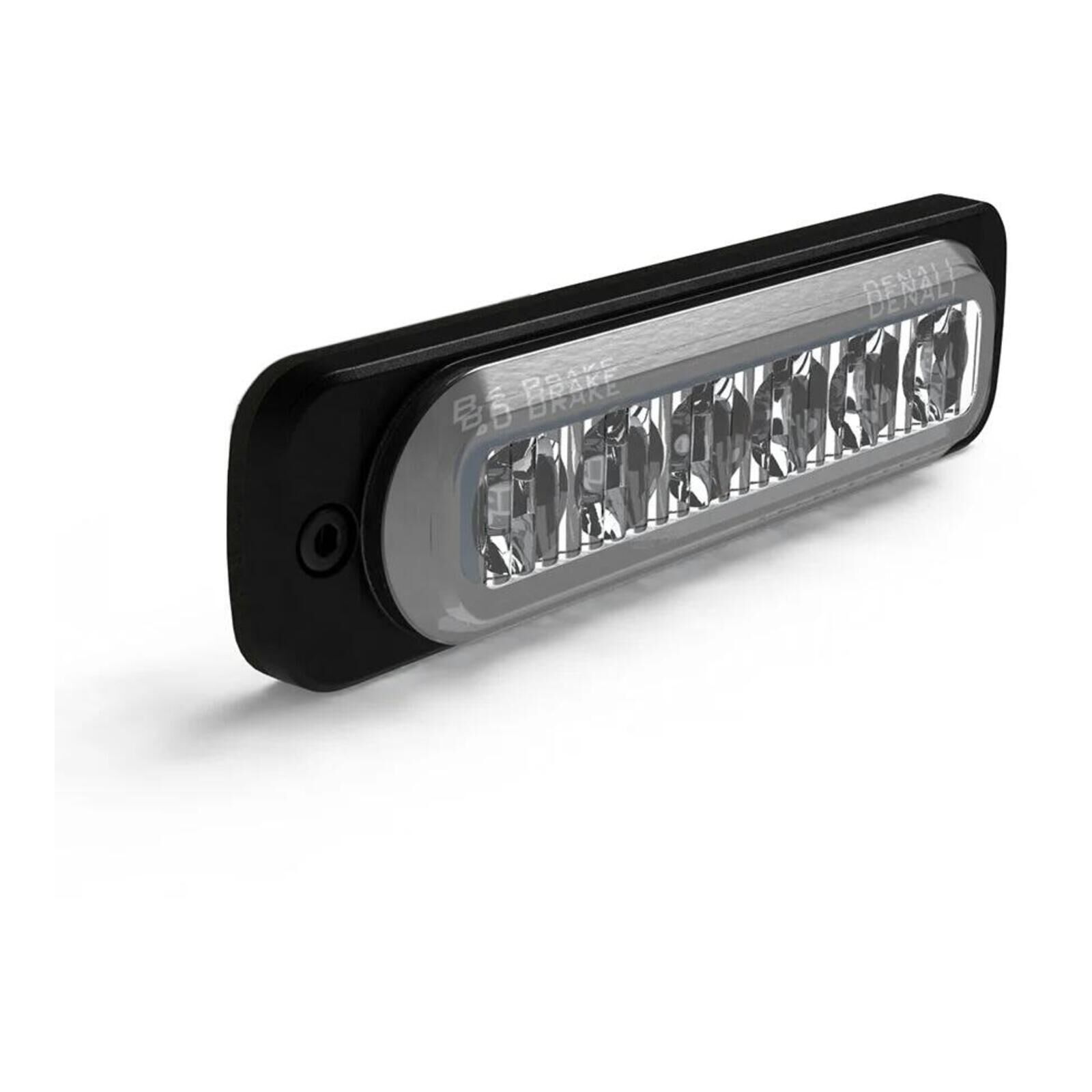

The DENALI B6 Flush Mount Auxiliary LED Brake Light Kit is designed to mount a single B6 Pod to any flat surface on your vehicle. The included silicone gasket ensures a watertight seal, while the supplied hardware supports both through-bolting and blind self-tapping installation in plastic.

Designed to deliver maximum light output in a compact, low-profile housing, the B6 provides exceptional brightness while remaining discreet once installed. It features a waterproof micro connector, a plug-and-play splitter, and Posi-Tap connectors for easy installation. Connect it directly to a DENALI CANsmart™ Controller or integrate it into any vehicle brake light circuit.

When connected to a DENALI CANsmart™ Controller, the B6 offers programmable brake light flash patterns and deceleration-activated automatic brake light functionality, enhancing rear visibility and rider safety.

Features:

• Dual-circuit operation for running and brake lights.
• 180-degree viewing angle.
• Six high-power LEDs.
• Low 6-watt power consumption.
• Compact, low-profile design.
• Waterproof mounting gasket included.
• Easy connection to the vehicle brake light circuit.
• Plug-and-play waterproof connection to the DENALI CANsmart™ Controller.

Specifications:

• Power draw: 0.5 A.
• Voltage: 12 V DC.

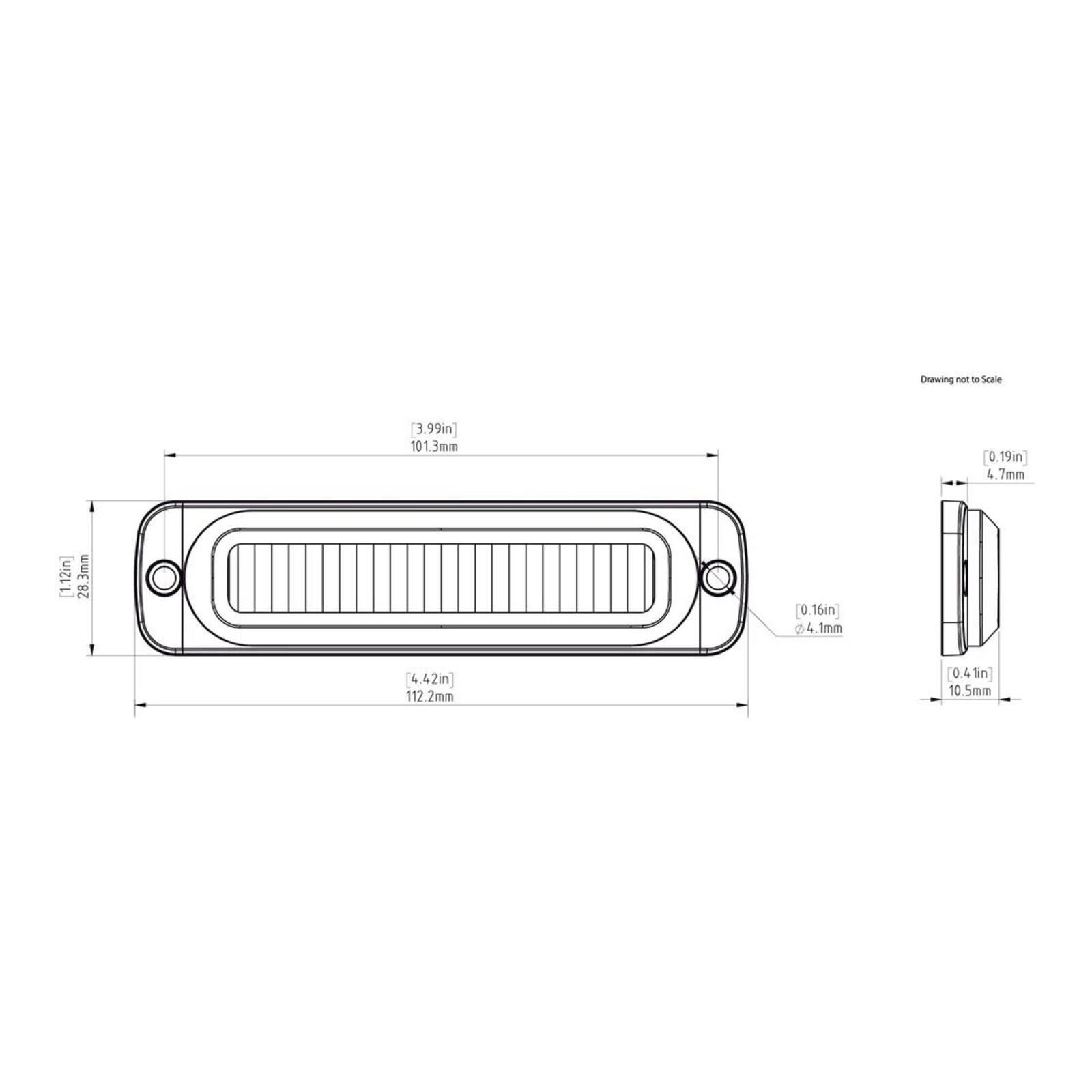

• Dimensions: 4.4 × 1.1 × 0.42 inches.
• Raw light output: 870 lumens.
• Waterproof rating: IP67.

Additional Features with DENALI CANsmart™ Controller:

• Programmable deceleration-activated brake light.
• Programmable brake light flash patterns.
• Plug-and-play waterproof connection.

What's in the Box:

• 1 × DENALI B6 Red Brake Light Visibility Pod (DNL.B6.003).
• 1 × Flush Mount for DRL and B6 Visibility Pods (LAH.DRL.10200).

Note: The kit components are packaged separately and may ship in separate boxes.
