AERO ABS Side case system

SW-MOTECH has built the AERO ABS side case system suitable for the Honda Africa Twin CRF1100L Adventure Sports with extremely resilient bike-specific PRO side carriers. The PRO side carriers can be installed together with an Akrapovic slip-on exhaust system.

Aerodynamic style, low weight, comfortable details: the AERO ABS side case impresses with its streamlined shape and modern, particularly easy-care surface. The side cases made of heavy-duty ABS plastic offer 25 litres of storage space per side with a weight of only 1.8 kg and, in combination with the removable side carriers from SW-MOTECH, are the ideal luggage solution for sporty motorcycle travellers on paved roads (not suitable for offroad use).

The side carriers are extremely durable and designed to fit closely along the vehicle. SW-MOTECH manufactures these side carriers in robust steel and then finish them off with a black powder coating. The patented QUICK-LOCK system allows the carrier to be attached and removed quickly - after a quarter turn at the attachment points, the carrier can be removed completely and only inconspicuous mounting tabs remain on the motorcycle.

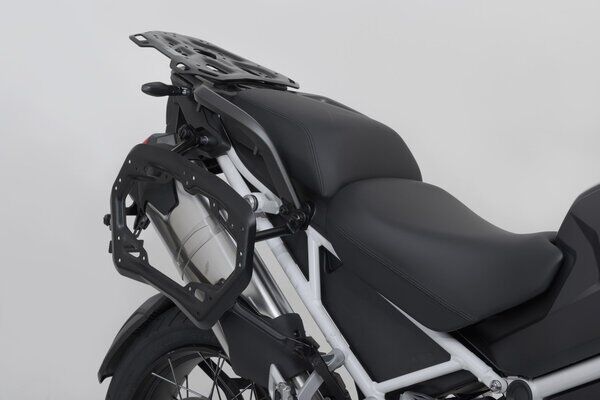

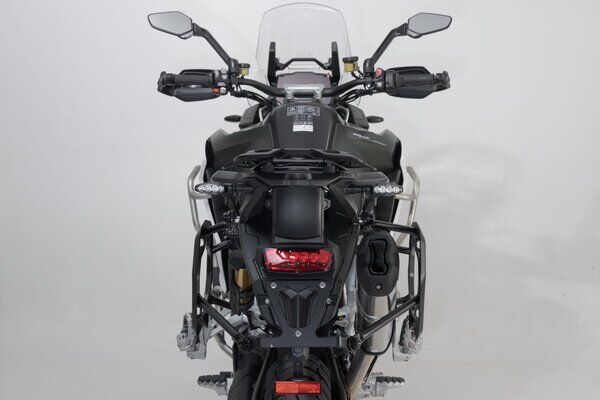

PRO Side carrier

• Extremely durable due to its optimized shape and 2.5 mm thick steel
• Perfect fit, designed to fit close to the bike
• Fully removable with newly developed, even more robust quick-release fasteners
• Optional anti-theft protection available
• For permanent mounting, quick-release fasteners can be replaced with standard parts (M8)
• Numerous functional bores
• Simple mounting on original mounting points
• Powerful corrosion protection thanks to powder coating
• Secure hold for TRAX, DUSC, AERO and SysBags WP L with adapter plate

Details

• Material: Steel
• Surface: powder coated
• Color: black
• Total Weight: appr. 5,2 kg / appr. 11.5 lb
• Width built onto motorcycle: 52,0 cm / 20.5 in

Note

• Also fits with the Akrapovic Slip-On exhaust system.
• Adapter kits are required for aluminum cases from SW-MOTECH and other manufacturers and also for AERO ABS side cases and SysBags with adapter plates (SysBag 15, 30, WP L).

Adapter kit for PRO side carrier

• Adapter kit for attaching an AERO ABS side case to an SW-MOTECH PRO side carrier
• Mounted on to the existing holes of the SW-MOTECH PRO side carrier
• For left and right sides

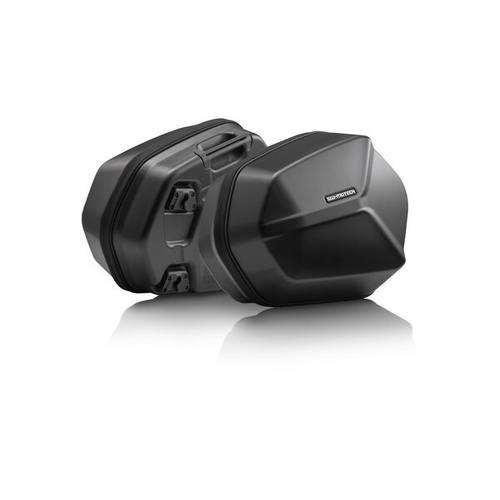

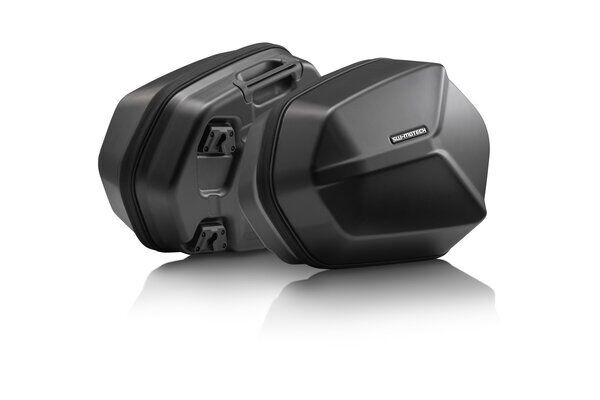

AERO ABS Side case set

• Lightweight and sturdy side cases for motorcycle travelers.
• Safely secured via quick-release fasteners to the removable PRO/EVO side carriers by SW-MOTECH
• Bike-specific PRO or EVO side carrier are available separately
• Protection against theft by securing to the side carrier, lockable zipper and lock for motorcycle luggage included in the delivery
• 25 l storage per case, weighing just 1.8 kg when empty
• Comfortable interior: padded textile lining, elastic cross straps, mesh pocket, bag to store lock for motorcycle luggage
• Open it completely on the hotel bed or flip it open partially: Lid limiters with snap buckle secure the content

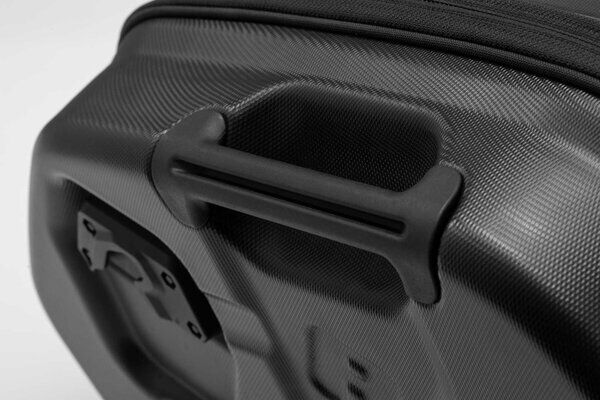

• Carrying handles allow for carrying two cases with one hand

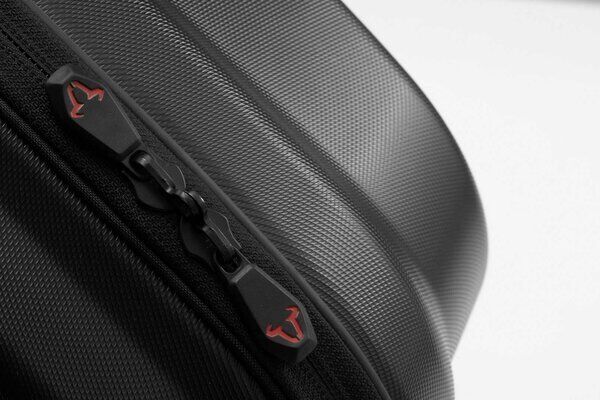

• Reflective details for more safety in traffic
• Structured surface is easy to care for and scratch-resistant and lends the AERO ABS side cases a modern look
• Made from heavy-duty, weather-proof and UV-resistant 2.5-mm thick (inner case) and 2-mm thick (outer case) ABS plastic
• Waterproof inner bag included in delivery

Details

• Material: ABS plastic
• Color: black / black
• Size: 52,0 x 22,0 x 39,0 cm / 20.5 x 8.7 x 15.4 in
• Total Weight: appr. 5,4 kg / appr. 11.9 lb
• Total Volume: 25,0-50,0 l

Required for mounting

• The removable side carriers are available separately. They are included with the AERO ABS side case systems.

Warning

• Not suitable for off-road use

Anti-theft protection for PRO side carriers

• Anti-theft protection for PRO side carrier
• With the anti-theft protection, any two quick release fasteners can be replaced
• Set for right and left PRO side carrier, consisting of 2 matching locks and 2 identical keys

Details

• Color: black
• Total Weight: appr. 0,3 kg / appr. 0.6 lb

Note

• For anyone who wants to use just one key for both their cases and anti-theft protection: the QLS.00.095.15000 includes 8 matching locks for side cases and the top case from the TRAX ADV and ION series, as well as anti-theft protection for PRO side carriers.

Multi-tool key chain attachment

• Multitool as practical key chain
• Quick-release fastener opener for EVO and PRO side carriers
• Hex key (14 mm) - ideal for many motorcycle mirrors
• Hex keys in four additional sizes (8, 10, 12, 13 mm)
• Bottle opener
• Key chain eyelet
• With laser-etched SW-MOTECH logo

Included in delivery

• 2 x AERO ABS side case
• 2 x waterproof inner bag
• 2 x locks for motorcycle luggage
• 2 x PRO Side carrier
• 2 x Adapter kit for PRO side carrier
• 2 x Anti-theft protection for PRO side carriers
• Mounting instructions
• Mounting material

Details

• Material: ABS plastic
• Color: black
• Total Weight: appr. 11,6 kg / appr. 25.6 lb
• Total Volume: 25,0-50,0 l
